Instrument Cluster Installation

  1. Install the instrument cluster with the screws.

    Tighten

    Tighten the instrument cluster screws to 2 N-m (18 lb-in).

  2. Install the instrument cluster trim panel. Refer to "INSTRUMENT CLUSTER TRIM PANEL INSTALLATION ".

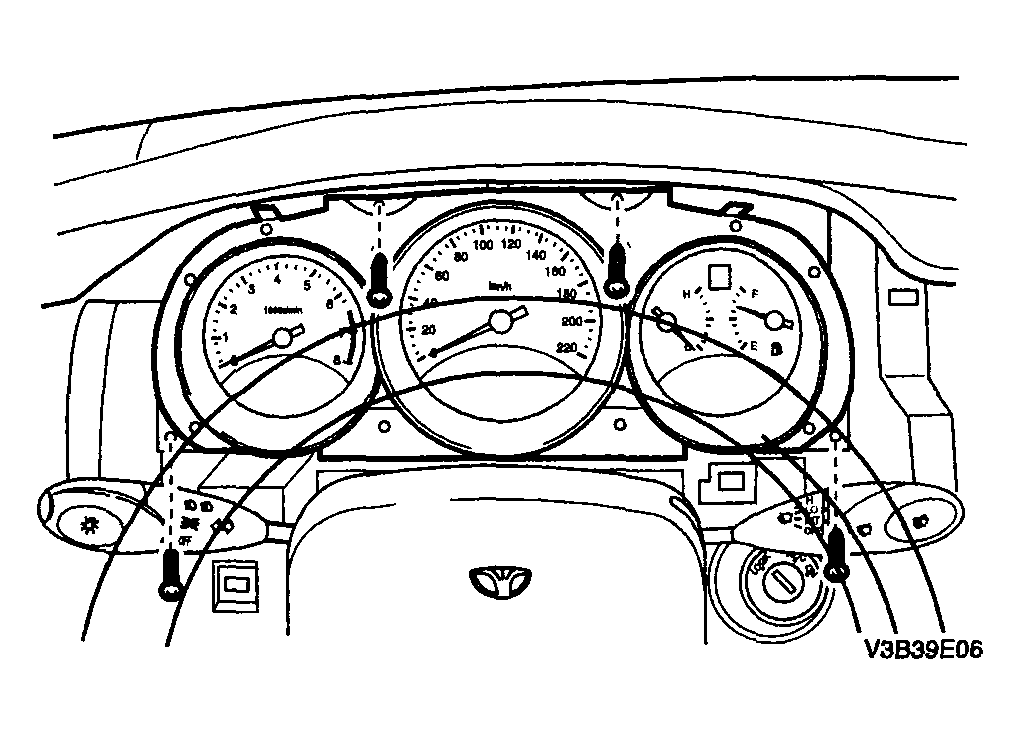

    Fig 1: Installing Instrument Cluster With Screws
    G04096153Courtesy of SUZUKI OF AMERICA CORP.
