Instrument Cluster Trim Panel Installation

  1. Connect the electrical connectors.
  2. Install the instrument cluster trim panel with the screws.

    Tighten

    Tighten the instrument cluster trim panel screws to 3 N.m (27 lb-in).

  3. Install the audio system trim plate.

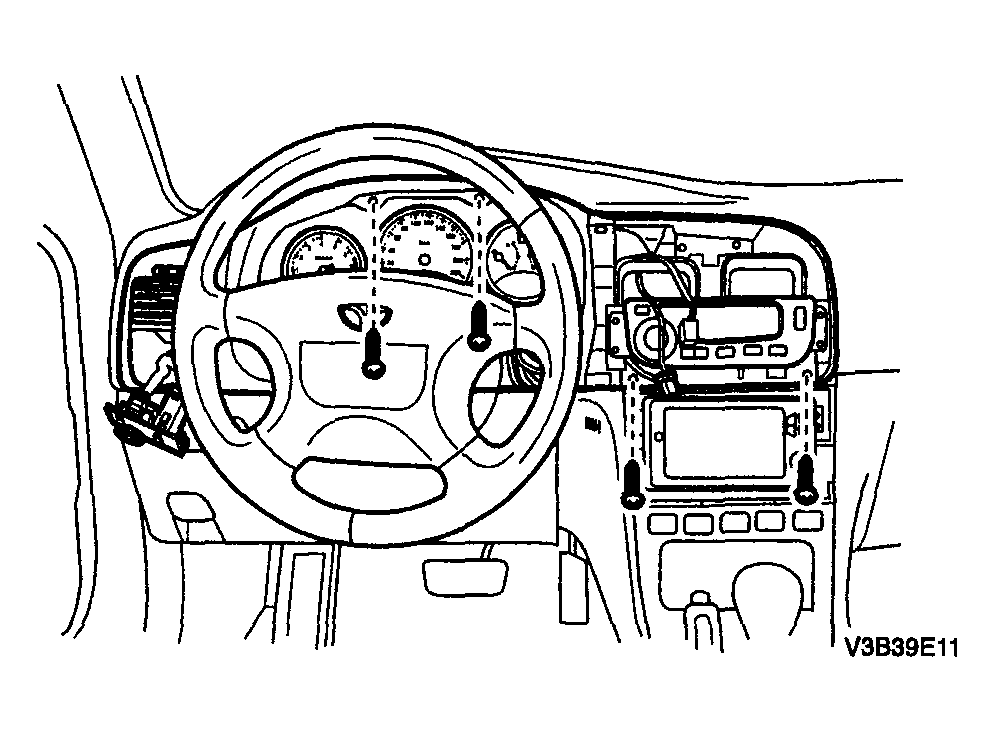

    Fig 1: Installing Instrument Cluster Trim Panel With Screws
    G04096171Courtesy of SUZUKI OF AMERICA CORP.
