Floor Carpet Installation

  1. Install the floor carpet.
  2. Install the floor carpet retaining clips.
    Fig 1: Installing Floor Carpet Retaining Clips
    G02997060Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the gearshift housing with the bolts.
    1. Tighten the gearshift housing bolts to 8 N.m (70 lb-in).

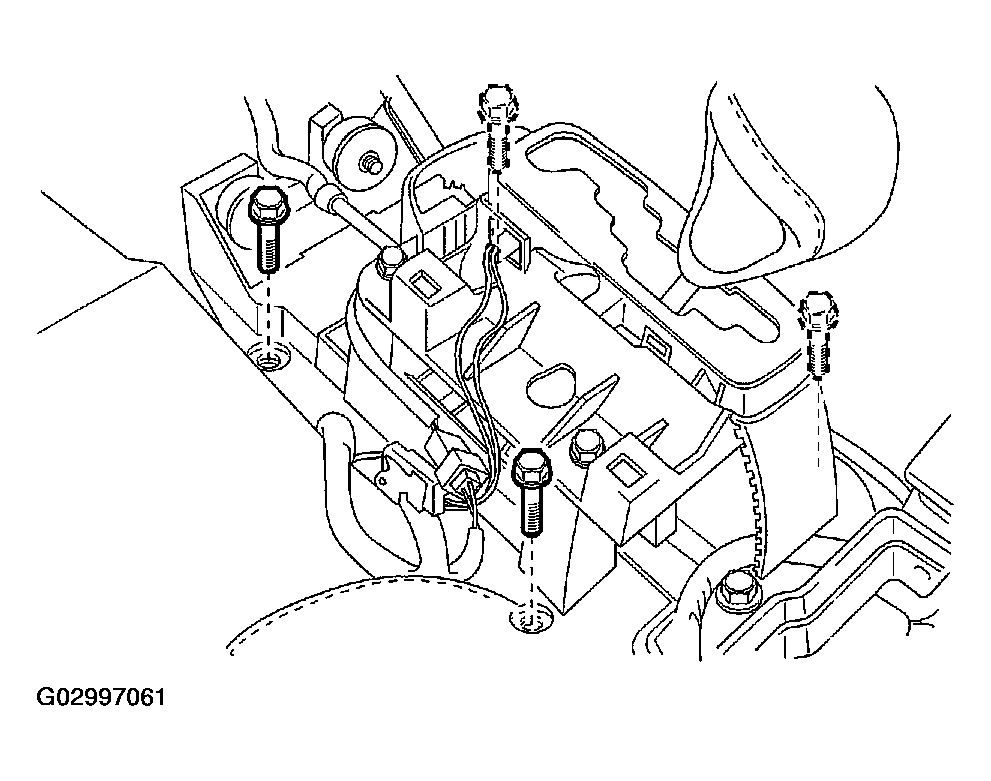

    Fig 2: Installing Gearshift Housing With Bolts
    G02997061Courtesy of SUZUKI OF AMERICA CORP.
  4. Install the floor console. Refer to Floor Console Installation  .
  5. Install the left and the right kick panels. Refer to Kick Panel Installation  .
  6. Install the front seats. Refer to FRONT BUCKET SEAT INSTALLATION (FOR POWER DRIVER SEAT) .
  7. Install the left and the right lower B-pillar trim panels. Refer to Lower B-Pillar Trim Panel Removal  .
  8. Install the left and the right front rocker trim panels.
  9. Install the left and the right lower front seat belt anchors to the B-pillar with the bolts.
    1. Tighten the seat belt anchor bolts to 38 N.m (28 lb-ft).
  10. Install the left and the right rear rocker trim panels. Refer to Rear Rocker Trim Panel Removal  .
  11. Install the rear seat cushion. Refer to REAR SEAT CUSHION INSTALLATION .
  12. Connect the negative battery cable.
Fig 3: Installing Bolts Of Left & Right Lower Front Seat Belt Anchors
G02997062Courtesy of SUZUKI OF AMERICA CORP.
