Lower B-Pillar Trim Panel Removal

  1. Reposition the rear portion of the front rocker trim panel and the front portion of the rear rocker trim panel.
  2. Remove the lower B-pillar trim panel.

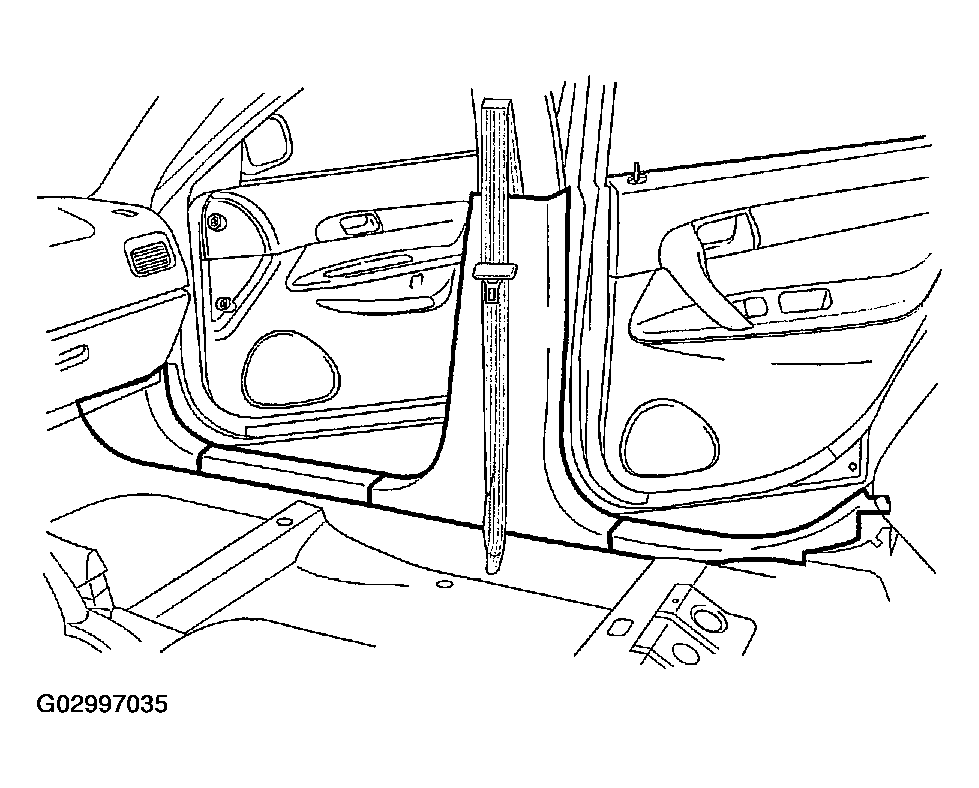

Fig 1: Removing Lower B-Pillar Trim Panel
G02997035Courtesy of SUZUKI OF AMERICA CORP.
