Ignition Switch Keyhole Lamp Installation

  1. Install the ignitions switch keyhole lamp and the bulb.
    1. Tighten the ignition switch keyhole lamp screw to 1.5 N.m (13 lb-in).

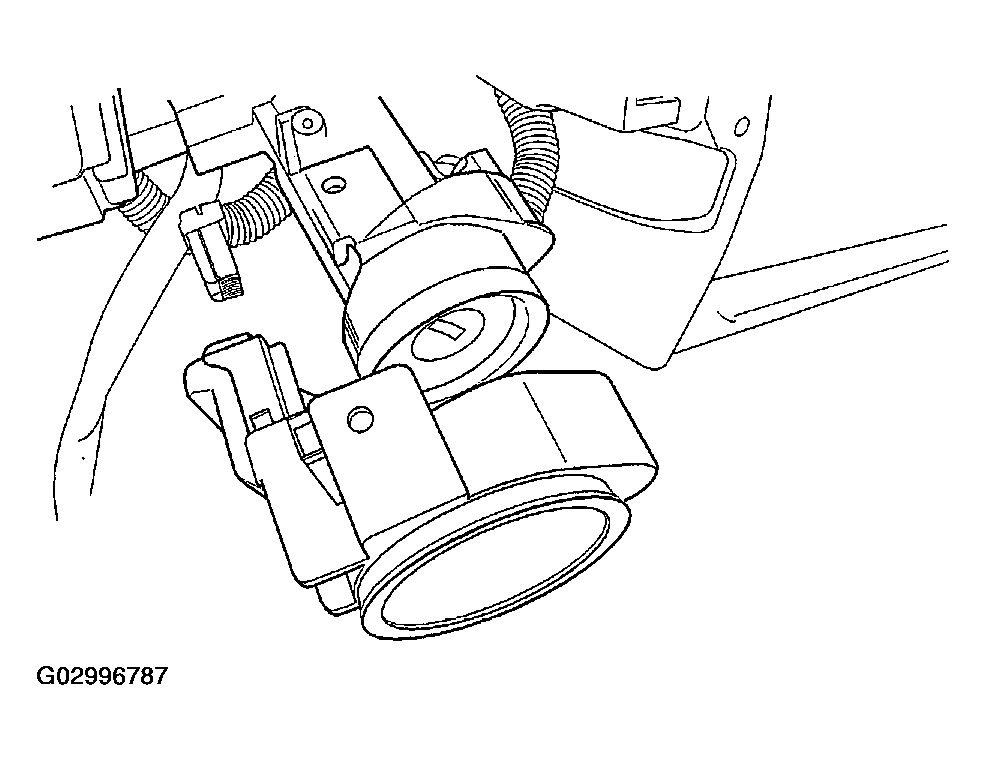

    Fig 1: Installing Ignition Switch Keyhole Lamp
    G02996787Courtesy of SUZUKI OF AMERICA CORP.
  2. Raise the steering column.
  3. Connect the steering column electrical connector.
  4. Install the nuts and the bolts securing the steering column.
    1. Tighten the steering column nuts to 22 N.m (16 lb-in).
    2. Tighten the steering column bolts to 22 N.m (16 lb-in).
  5. Install the steering column upper, lower cover.

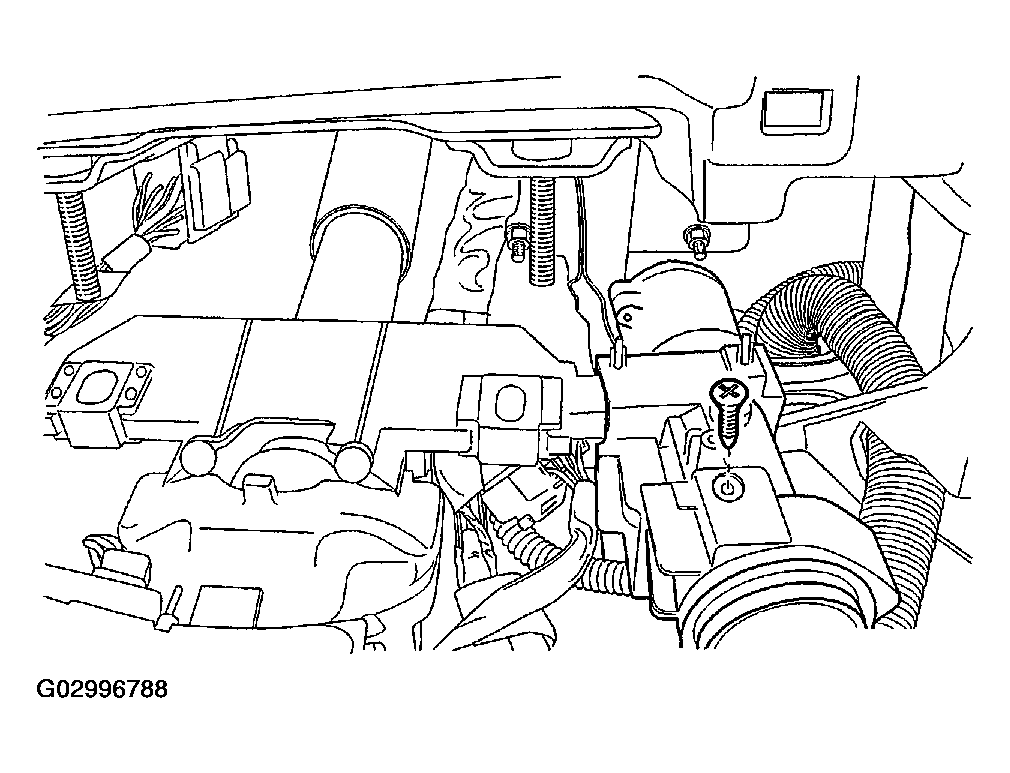

    Fig 2: Installing Steering Column Upper & Lower Cover
    G02996788Courtesy of SUZUKI OF AMERICA CORP.
  6. Install the instrument cluster trim panel. Refer to INSTRUMENT CLUSTER TRIM PANEL INSTALLATION .
  7. Install the knee bolster. Refer to DRIVER'S SIDE KNEE BOLSTER INSTALLATION .
  8. Connect the negative battery cable.

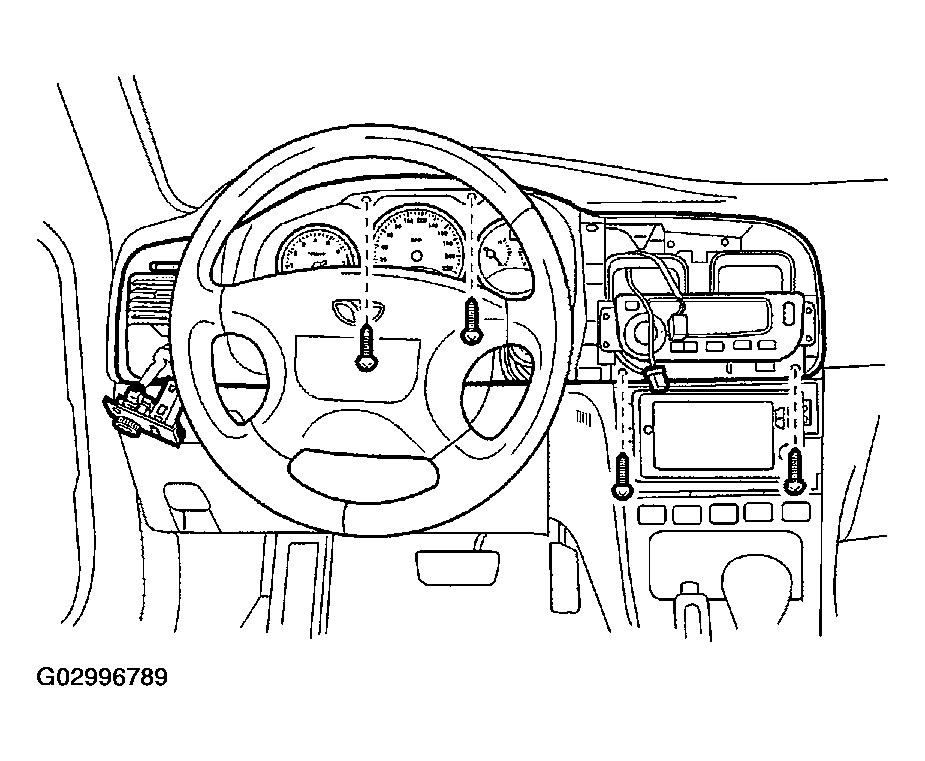

Fig 3: Installing Instrument Cluster Trim Panel
G02996789Courtesy of SUZUKI OF AMERICA CORP.
