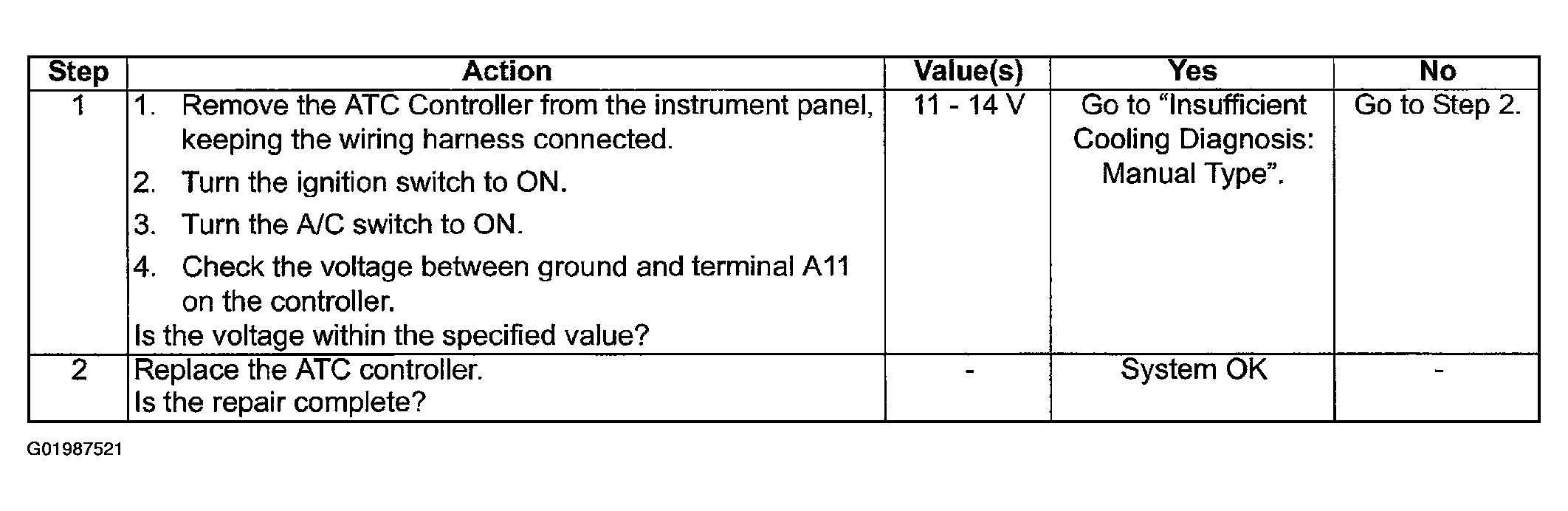

Compressor Magnetic Clutch Does Not Engage
WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
Refer to A/C Compressor Controls Circuit Diagram or A/C Compressor Controls Circuit Diagram for the electrical schematic diagram of the circuits described in this procedure.
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| Code 1 | In-Car Sensor Error |
| Code 2 | Ambient Air Temperature Sensor Error |
| Code 3 | Coolant Temperature Sensor Error |
| Code 4 | Air Mix Door Error |
| Code 5 | Sun Sensor Error |
| Code 6 | Power Transistor Error |
| Code 7 | Max-Hi Relay Error |
