Code 5: Sun Sensor Error

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Code 5 - Sun Sensor Error Diagram

Courtesy of SUZUKI OF AMERICA CORP.

This code will set if the output of the sun sensor indicates a probable short circuit or an open in the sensor or the associated wiring harness, or a malfunction of the ATC controller.

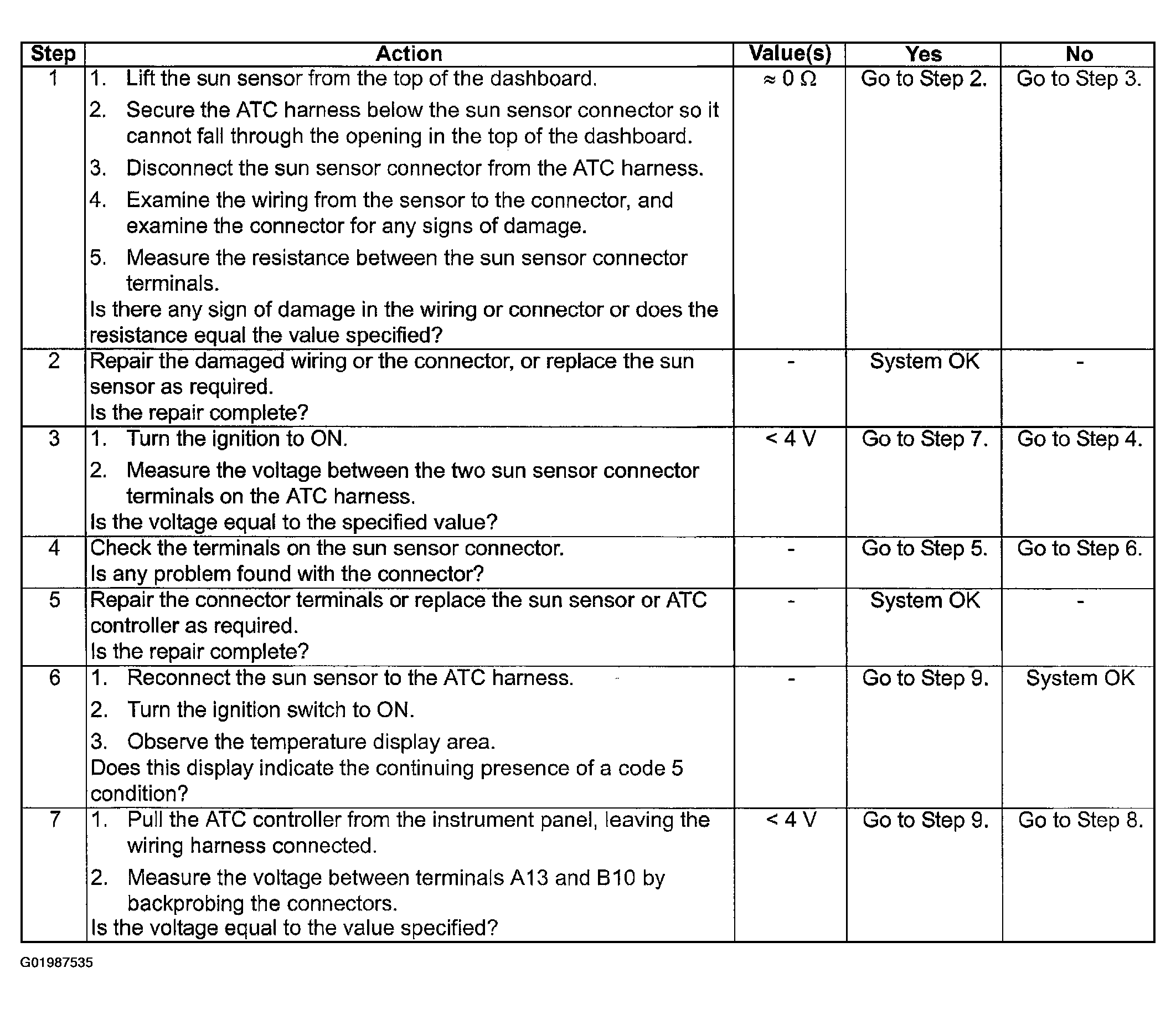

Fig 2: Identifying Code 5 - Sun Sensor Error Table (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

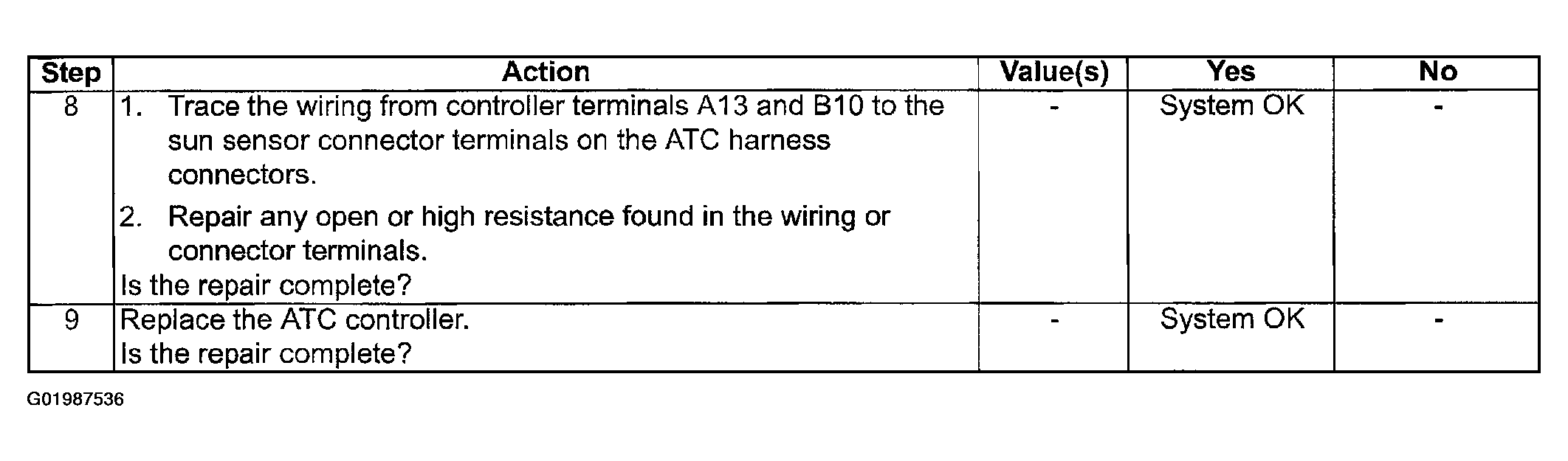

Fig 3: Identifying Code 5 - Sun Sensor Error Table (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
