Code 7: Max-Hi Relay Error

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

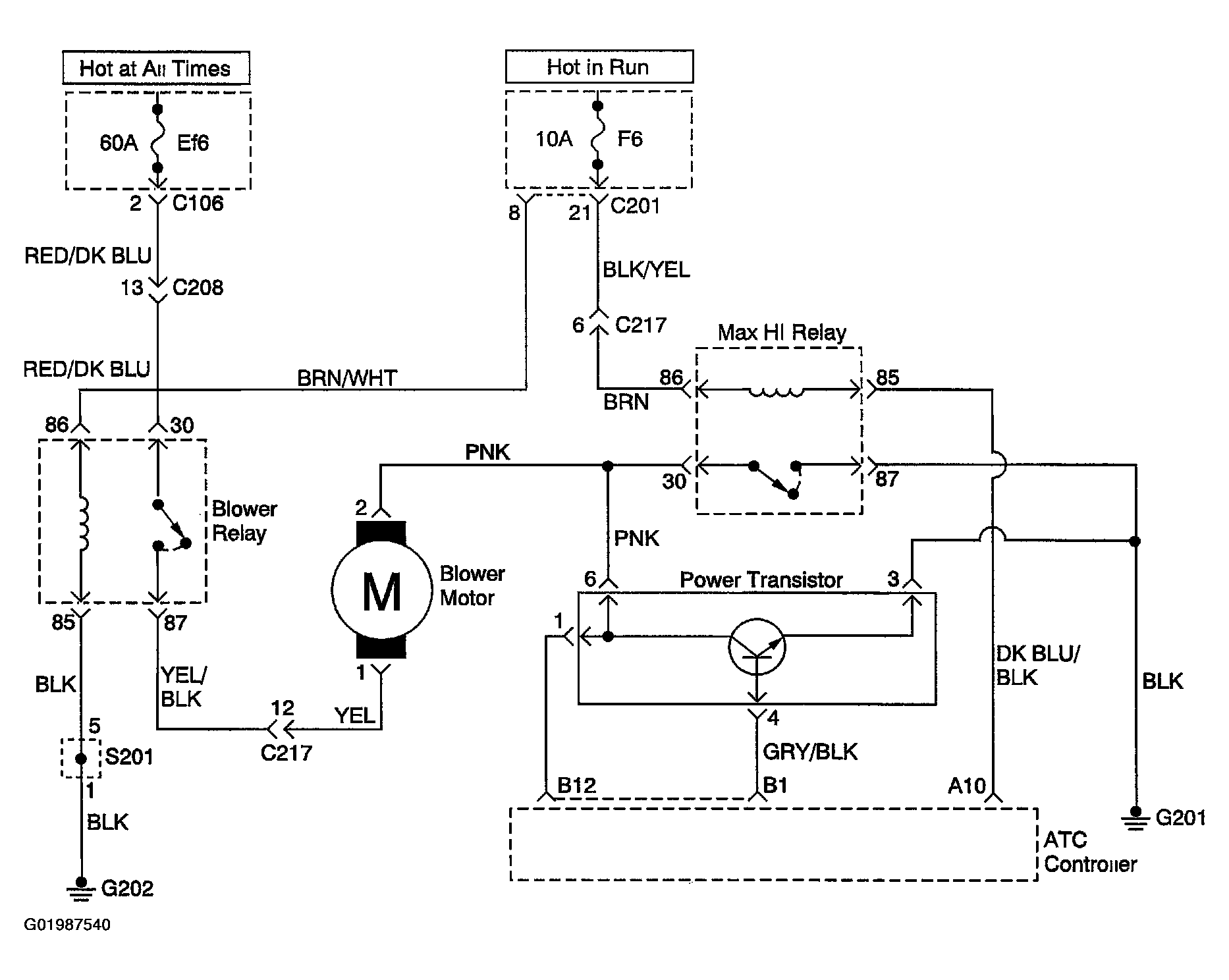

Fig 1: Code 7 - Max-Hi Relay Error Diagram

Courtesy of SUZUKI OF AMERICA CORP.

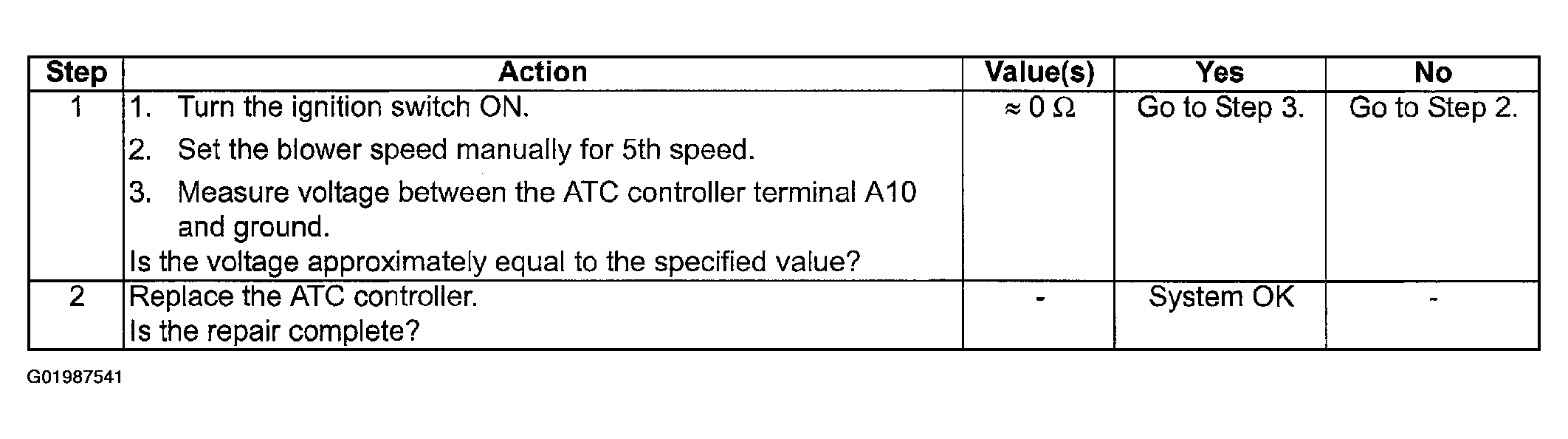

Fig 2: Identifying Code 7 - Max-Hi Relay Error Table (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

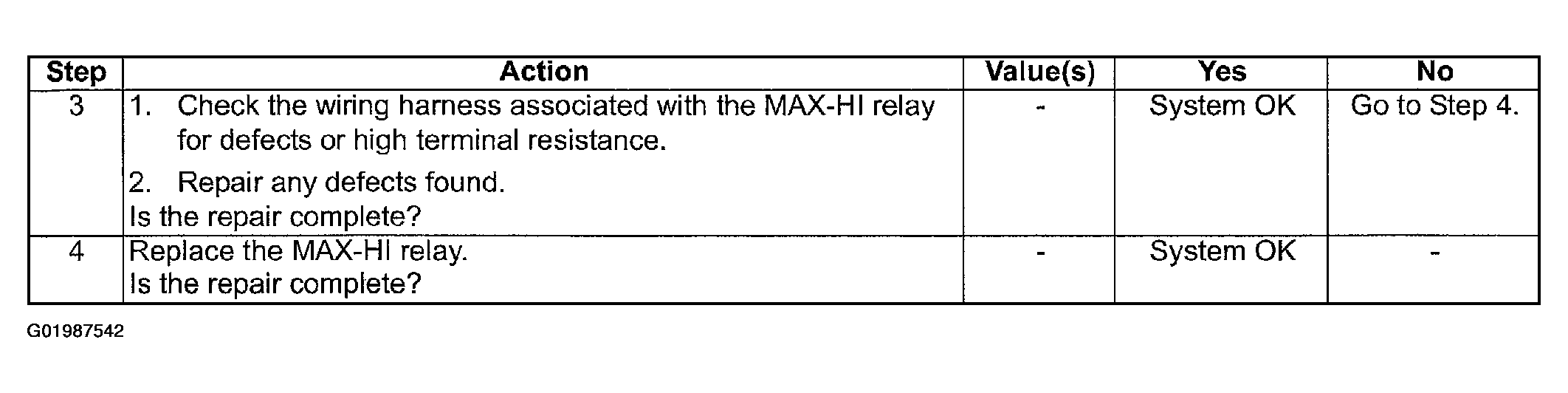

Fig 3: Identifying Code 7 - Max-Hi Relay Error Table (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
