Torque Specifications

CAUTION: Screws coated with a locking fluid or self locking nuts must be replaced with new when reinstalled.

See the table below to find the tightening torques for components not included in the summary.

Nuts and screws which are not self locking can be reused provided that they are in good condition.

Always use new screws and nuts when angle tightening. Any exceptions to this rule will be indicated in the method.

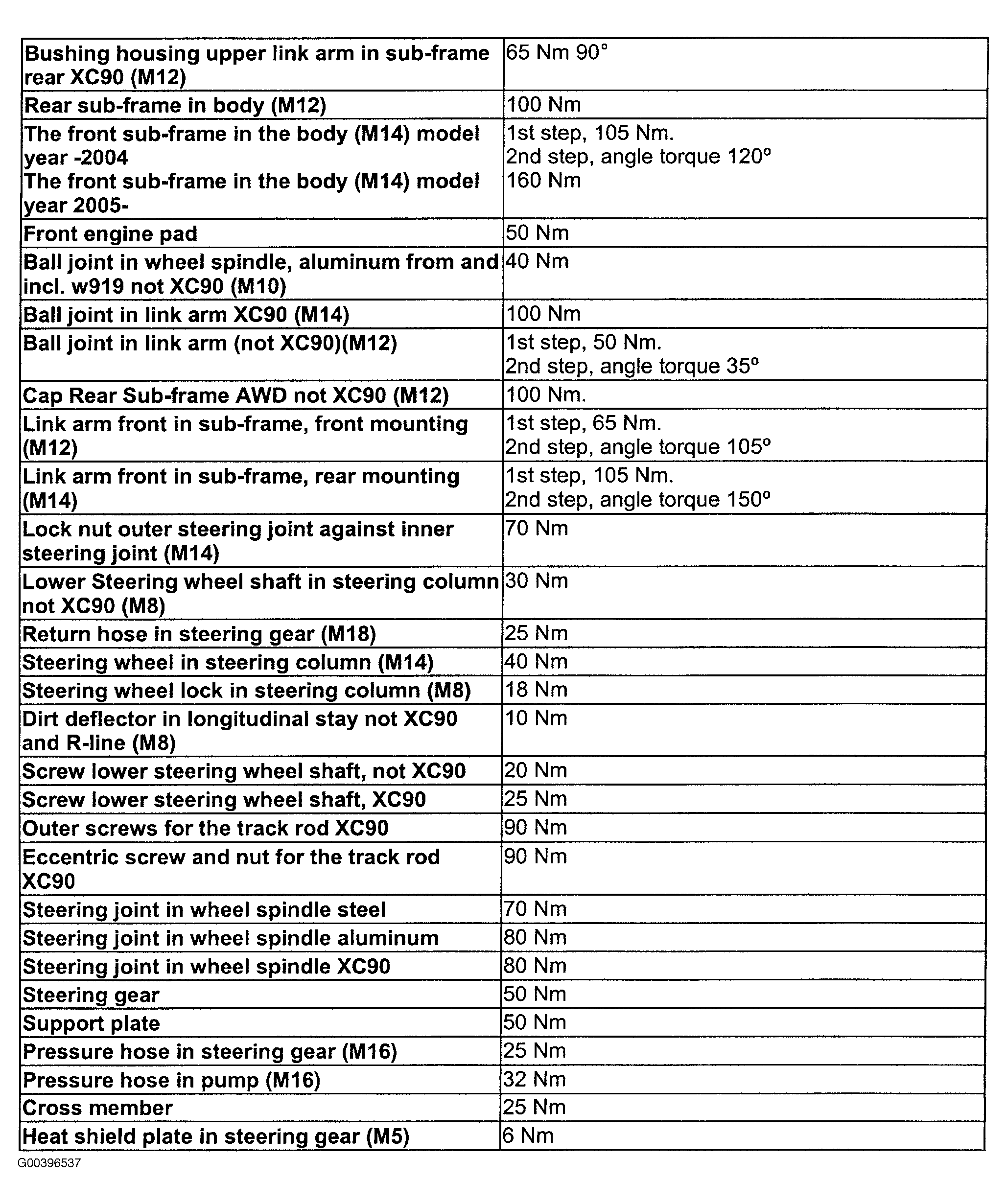

Fig 1: Torque Specifications Table (1 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

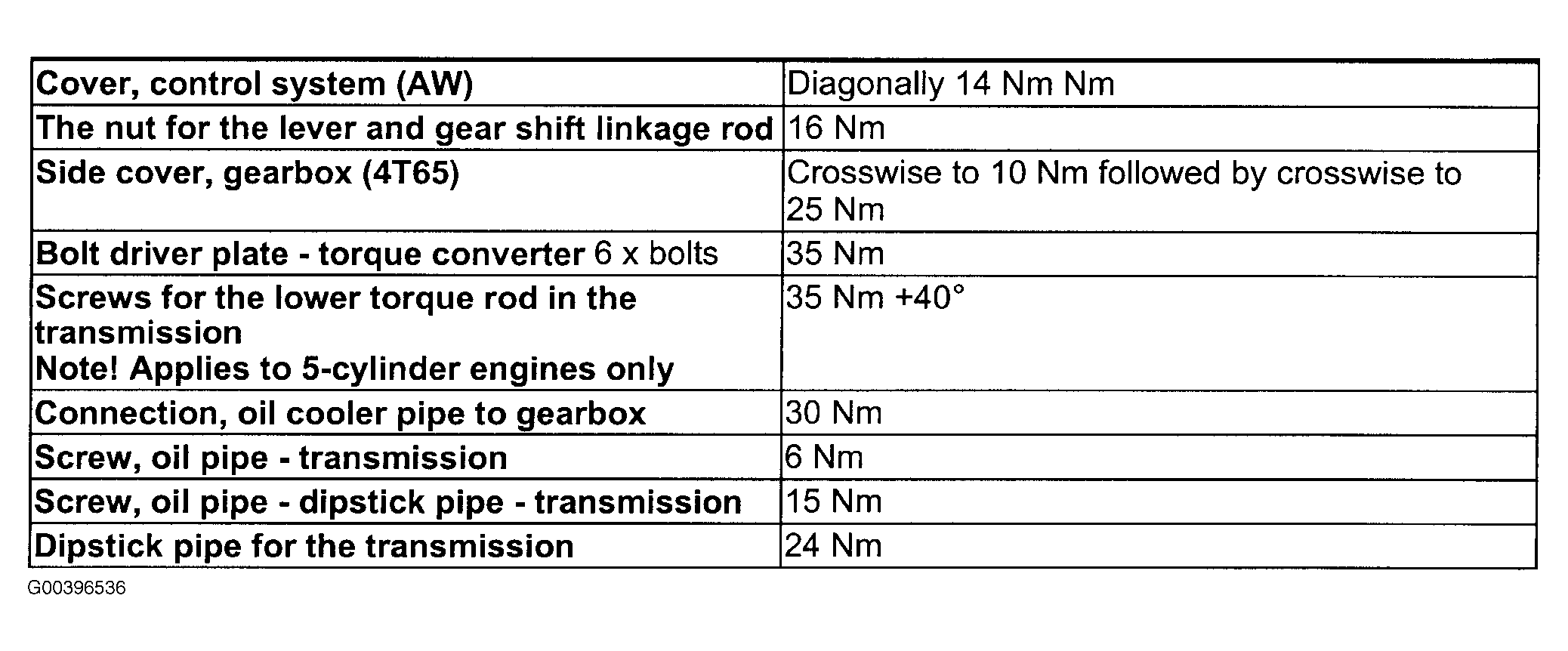

Fig 2: Torque Specifications Table (2 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

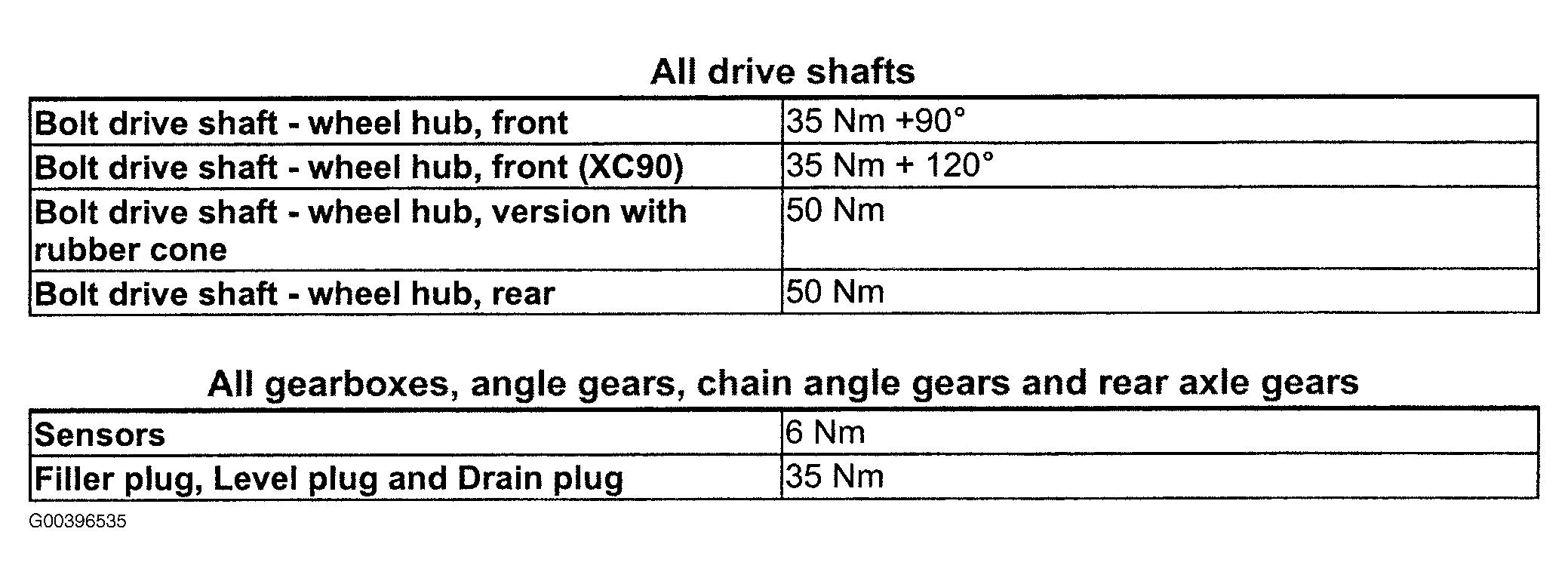

Fig 3: Torque Specifications Table (3 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

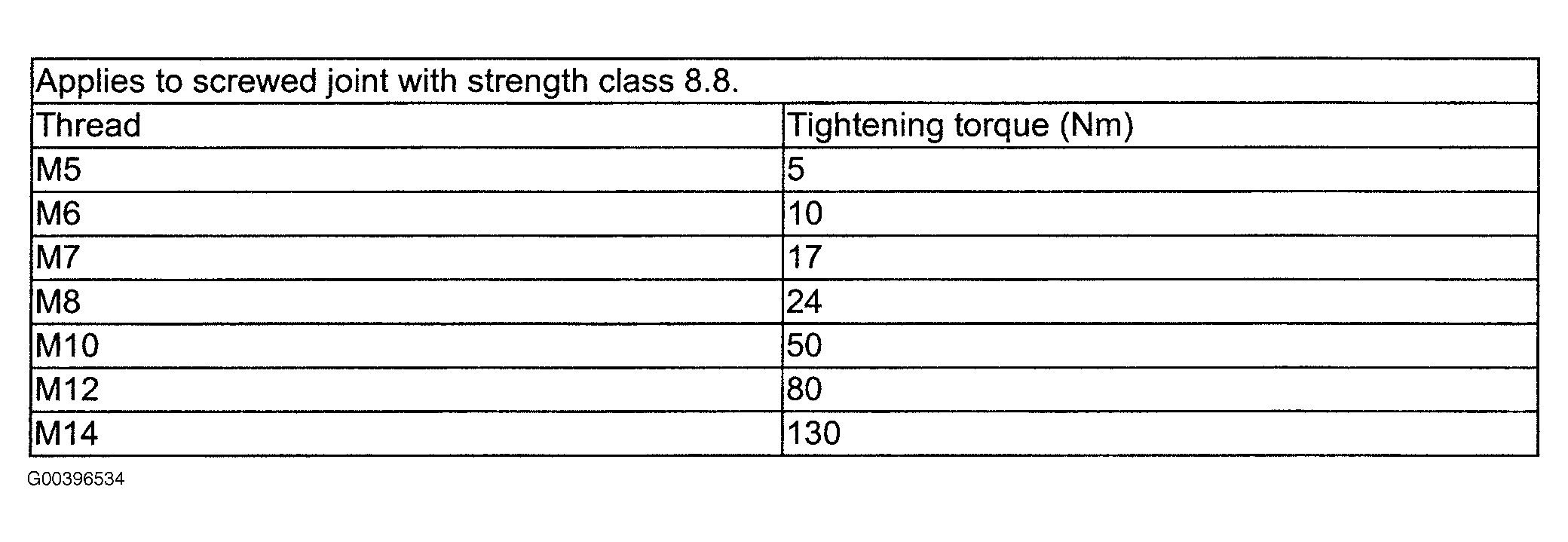

Fig 4: Torque Specifications Table (4 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.
