Overview - Center Console

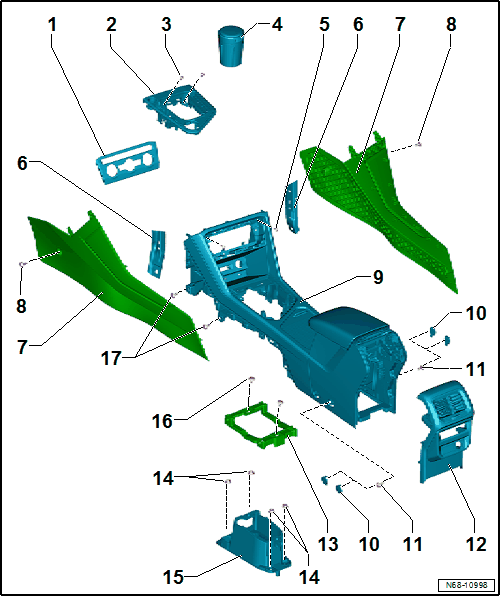

Fig 1: Exploded View Of Center Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Display Control Head Trim
- There are different versions
- Removing and Installing. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .
Center Console Insert
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
Bolts
- Quantity: 2
- 1.5 Nm
Front Ashtray
- Equipped on some models
- Removing and Installing. Refer to FRONT ASHTRAY, REMOVING AND INSTALLING .
Bolts
- Quantity: 2
- 1.5 Nm
Front Bracket
- For the footwell center console trim panel
- Left and right
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Footwell Center Console Trim Panel
- Left and right
- Removing and Installing. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
Bolts
- Quantity: 2
- 1.5 Nm
Center Console
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Cap
- Quantity: 4
- Left and right
- Push in the center console
Bolts
- Quantity: 4
- 8 Nm
Center Console Rear Trim
- There are different versions
- Removing and Installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
Securing Bracket
- For the center console
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Nuts
- Quantity: 4
- 8 Nm
Selector Housing Insulation
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Bolts
- Quantity: 2
- 8 Nm
Bolts
- Quantity: 4
- 1.5 Nm
