Right Flange Shaft Seal In Front Axle Differential Lock, Replacing: Installing

Fig 1: Identifying Oil Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fill the space on the new seal between the sealing/dust lip -arrow- halfway with Sealing Grease: G 052 128 A1  .

Seal installation position:

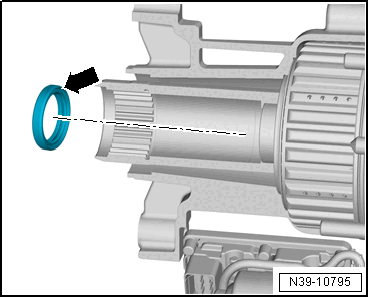

Fig 2: Seal Installation Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The open side -arrow- faces the inside (towards front axle differential lock) of the front axle differential lock.

-- Install the seal all the way in without tilting it.

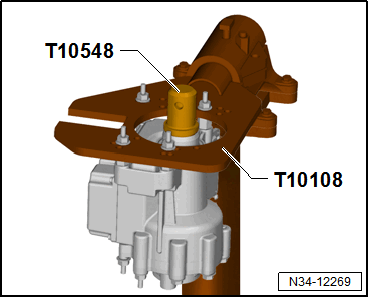

Fig 3: Install Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the flange shaft. Refer to Figure.

-- Install front axle differential lock. Refer to FRONT AXLE DIFFERENTIAL LOCK, INSTALLING .

-- Fill the front axle differential lock fluid. Refer to FRONT AXLE DIFFERENTIAL LOCK FLUID, DRAINING AND FILLING .
