Transmission, Removing, Vehicles With Gasoline Engine, AWD Vehicles

Brief Description

The transmission is removed downward separately.

>>From above:<<

Battery disconnected and when it is located engine/motor compartment, removed. Air filter and starter removed. Engine and transmission are supported before the left subframe mount is removed.

>>From below:<<

The -subframe- is removed together with the -pendulum support-. The -steering gear- remains in the vehicle.

Both drive axles are disconnected from the transmission and remain inside the wheel bearing housings. Occasionally they will be moved to the side, but they still remain on the vehicle.

Special tools and workshop equipment required

• Engine and Gearbox Jack:VAS 6931
  Fig 1: Engine and Gearbox Jack VAS6931 or VAG1383A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Transmission Support - Mounting Plate 61:3282/61

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Hose Clamps - Up To 25 mm:3094
  Fig 2: Hose Clamps

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Tensioning Strap:T10038
  Fig 3: Identifying Tensioning Strap T10038

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Bung Set:VAS 6122
  Fig 4: Engine Bung Set

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Pry Lever:80 - 200
  Fig 5: Identifying Pry Lever

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Insert Tool - 18mm:T10179  or Insert Tool - 18mm:T10509
  Fig 6: Insert Tool - 18mm

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Transmission Support:3282
  Fig 7: Transmission Support 3282

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Socket - Xzn 14:T10061
  Fig 8: Identifying Socket

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Lift the vehicle, all four mounts from lifting platform at the same height.

-- Move the selector lever to >>P<<.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

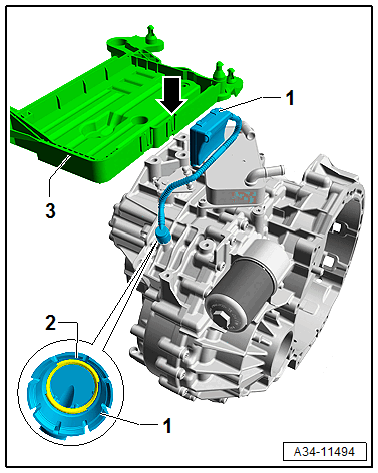

-- Remove the bleeder -1- if equipped, with the bleeder hose from the locking mechanism -arrow- of the battery tray -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Engine Compartment Battery

-- Remove the battery and the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

Luggage Compartment Battery

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the bracket with the air filter housing. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

Continuation for all.

-- Pry out the selector lever cable -1- from the selector lever using the Pry Lever:80 - 200  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2- and tie up the cable bracket -3- together with the selector lever cable.

-- Do not bend or kink the cable.

-- Remove the charge air pipe. Refer to CHARGE AIR SYSTEM .

-- Place a lint-free cloth on to transmission fluid cooler and transmission to absorb escaping coolant.

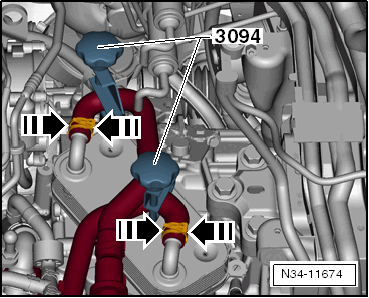

-- Clamp off the coolant hoses with Hose Clamps - Up To 25mm:3094  and remove them.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Seal off the transmission fluid cooler connections with suitable sealing plugs taken from the Engine Bung Set:VAS 6122  .

-- Disconnect the connector -1- for the Dual-Clutch Transmission Mechatronic -J743-. To do so turn the twist lock counter-clockwise -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .

It is recommended to remove the lower bolt first.

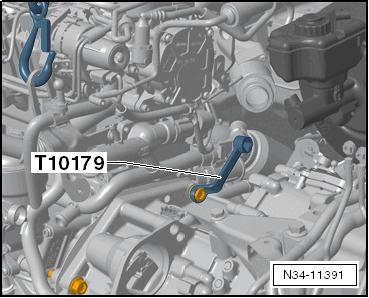

-- Remove the upper engine/transmission connecting bolt on the transmission with the Insert Tool - 18mm:T10179  or Insert Tool 18 mm:T10509  .

One bolt is located inside the hole for the starter -arrow-. Use Socket - Xzn 14:T10061  to remove the bolt.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect any hose and cable connections near the engine lifting eyes for the Engine Support Bridge:10-222A  .

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION, ARTEON .

-- Lightly pretension the engine/transmission assembly and Engine Support Bridge using the Spindles.

-- Remove the noise insulation. Refer to Noise Insulation .

-- Remove the lower section of the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

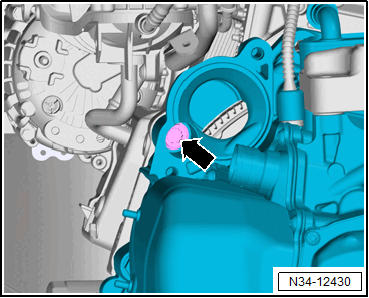

-- Remove the wire and bracket from the front oil pan -arrows-.

-- Route the wires near the transmission fluid pan upward and tie them secure.

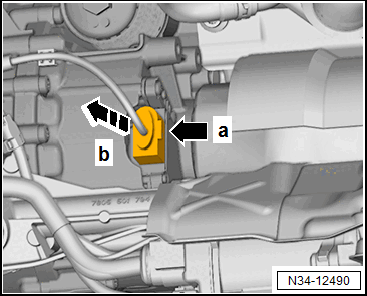

-- Release the connector for the Transmission Fluid Auxiliary Hydraulic Pump 1 -V475- -a- and remove the connector -b-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

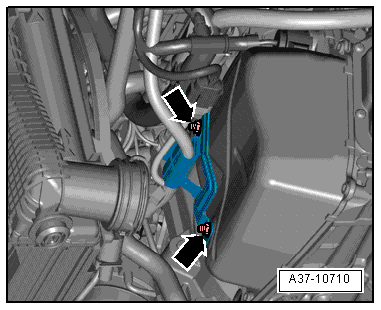

-- If equipped, disconnect the connector -1- from the sensor for the Oil Level Thermal Sensor -G266-.

-- Remove the subframe without the steering gear. Refer to OVERVIEW - SUBFRAME .

-- Remove both drive axles from the transmission. Refer to Drive Axle .

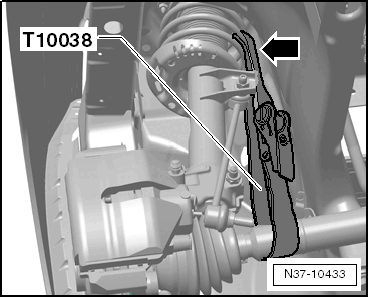

-- Secure the drive axle to the suspension strut using a Tensioning Strap:T10038  .

Do not damage the surface protection of the shafts.

-- Remove bolts -1- and -2- and bevel box transmission support.

-- Remove the bolts -A- and -B- from the bevel box and remove the heat shield -1-.

-- Mark the position of the driveshaft -arrows- with flexible disc to the bevel box output flange.

-- Remove the driveshaft from the bevel box -arrows-. Refer to DRIVESHAFT, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

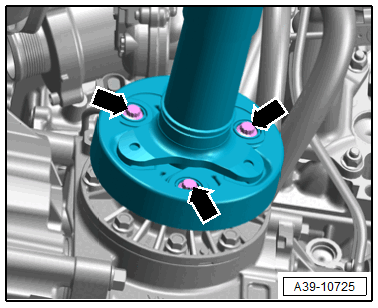

-- Use the Adapter:T10172/5-  -1- and the Counterhold Tool:T10172  -2- to loosen and tighten.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

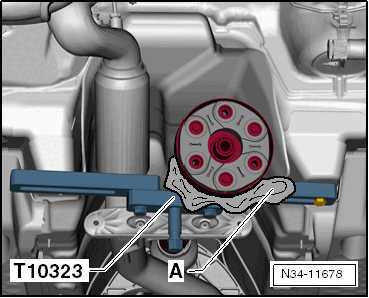

-- Secure the Support Bridge:T10323  with a bolt at the inner rear threaded hole for the subframe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The subframe bolts are meant for this.

-- Lay a cloth -A- on the Support Bridge

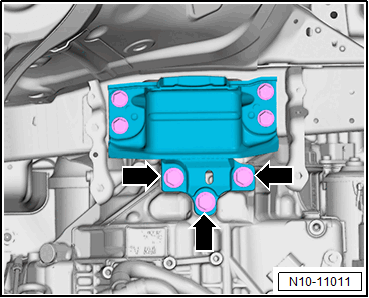

-- Remove the bolts -arrows- of the assembly mounts for the transmission.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

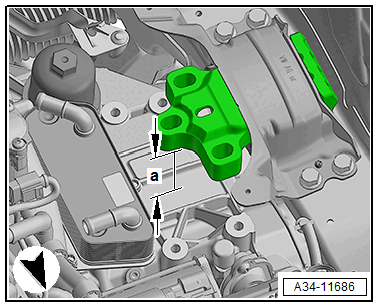

-- Lower the engine/transmission >>only<< on the transmission side approximately to the dimension -a- using the spindles on the Engine Support Bridge:10 - 222 A  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Dimension -a- = approximately 90 mm

The transmission is disconnected from the engine in this position.

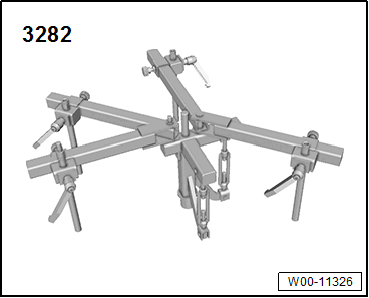

The Transmission Support:3282  is equipped with the Transmission Support - Mounting Plate 61:3282/61  to remove the 0GC transmission.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

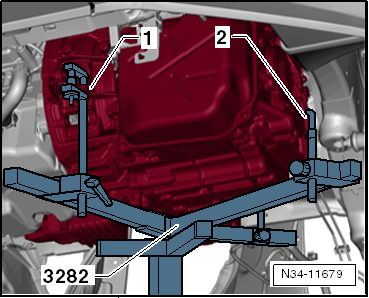

-- The Transmission Support:3282  is inserted in the Engine and Gearbox Jack:VAS 6931  .

-- Align the Transmission Support arms so that they align with the holes in the Adjusting Plate.

-- Install the mounting elements -A- on the Adjustment Plate as shown. The Transmission Support - Bolt:3282/34  is used as the right rear mounting element. This mounting element is located outside of the Adjusting Plate.

• The mounting element -C- on the Adjusting Plate is not used.

-- Move the Engine and Gearbox Jack:VAS 6931  with the Transmission Support:3282  under the transmission and align it.

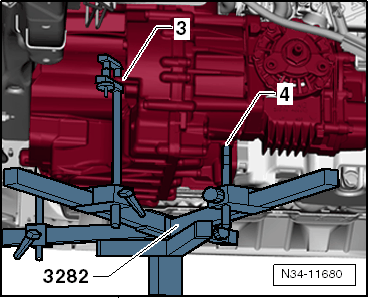

-- Install the fuse panel -1- and hooks -2- as shown on the transmission.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the fuse panel -3- and pins -4- as shown on the transmission.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the >>last<< engine/transmission connecting bolts.

-- Remove the transmission from the engine and carefully lower it, make sure there is >>clearance<< to the other components..

Transmission, transporting. Refer to TRANSMISSION, TRANSPORTING .

Secure the transmission on the assembly stand. Refer to SECURING ON ENGINE AND TRANSMISSION HOLDER .

Install the transmission. Refer to TRANSMISSION, INSTALLING .
