Transmission, Installing

Install in reverse order of removal. Note the following:

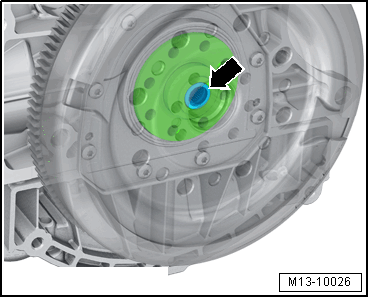

-- Replace the needle bearing -arrow- in the crankshaft. Refer to CRANKSHAFT NEEDLE BEARING, REPLACING .

-- Lightly lubricate the pin and splines on the transmission.

-- Check if the alignment sleeves -A- for centering the engine/transmission are in the cylinder block and insert them if they are not.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The missing alignment sleeves due to an offset from the engine and transmission lead to damage to the needle bearing in the crankshaft.

-- Make sure the intermediate plate is seated correctly.

Guide the engine and transmission together by hand until the engine flange and transmission flange come into contact with one another all around.

-- Adjust the transmission support until the engine and transmission are >>aligned<<.

-- Turn the crankshaft slightly if necessary.

Pay attention to the selector lever cable when installing.

-- Attach the transmission to the engine.

-- Install the new bolts -arrows- of the assembly mounts for the transmission. Tightening specification: ASSEMBLY MOUNTS .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the subframe. Refer to OVERVIEW - SUBFRAME .

-- Install the fan shroud with the radiator fan, if removed. Refer to FAN SHROUD, REMOVING AND INSTALLING, GOLF, TIGUAN, ARTEON, T-ROC AND PASSAT .

-- Install the starter. Refer to STARTER, REMOVING AND INSTALLING .

-- Install the drive axles. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

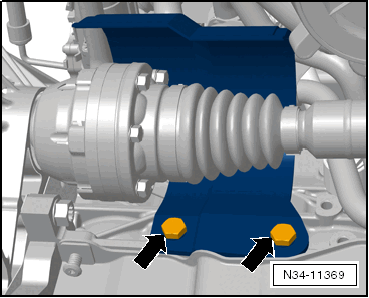

-- Install the right drive axle heat shield -arrows- (if equipped). Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .

-- Remove the screen -1- of the oil cooler carefully using a screwdriver and check for contamination.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If necessary, clean the screen and clip it in again.

-- Attach the coolant hoses to the transmission fluid cooler.

-- Install the wiring bracket on the oil pan.

-- Install the connectors on the transmission.

-- Install the cable bracket -3- with the cable on the transmission and tighten with the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Adjust the selector lever cable. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .

-- Install the battery tray and the battery. Refer to BATTERY, REMOVING AND INSTALLING .

-- Install the air filter housing.

Gasoline engine

-- Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Check the coolant level. Refer to COOLANT LEVEL, CHECKING AND FILLING .

-- Install the lower section of the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Install the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

Tightening specifications:

• Refer to TRANSMISSION TIGHTENING SPECIFICATIONS
• Refer to OVERVIEW - SHIFT MECHANISM
