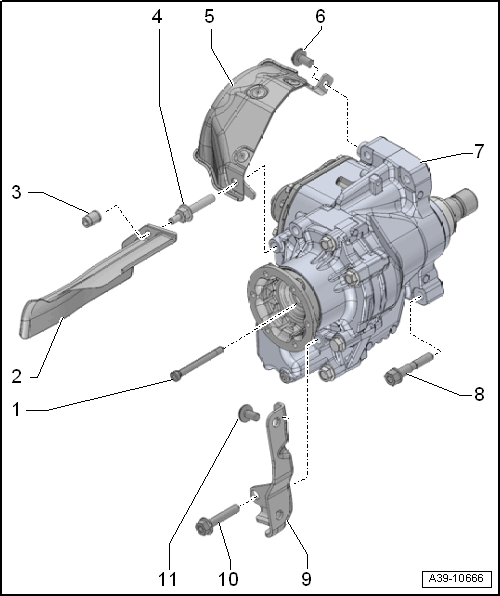

Overview - Bevel Box
- Bolt
- 25 Nm
- Heat Shield
- For drive axle
- Nut
- Quantity: 2 or 3
- Tightening specification. Refer to OVERVIEW - DRIVE AXLE .
- Bolt
- Tightening specification. Refer to DRIVESHAFT, REMOVING AND INSTALLING .
- Heat Shield
- For driveshaft
- Bolt
- Tightening specification. Refer to DRIVESHAFT, REMOVING AND INSTALLING .
- Bevel Box
- Characteristics of the bevel box. Refer to BEVEL BOX, DIFFERENTIATING .
- Removing and Installing. Refer to BEVEL BOX, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- Replace after removing
- Tightening Specification. Refer to TRANSMISSION TIGHTENING SPECIFICATIONS .
- Transmission Support
- There are different versions. Refer to the Parts Information for the allocation.
- Bolt
- Quantity: 2
- Transmission support to bevel box
- Tightening specifications and sequence. Refer to TRANSMISSION SUPPORT TO ENGINE AND BEVEL BOX .
- Bolt
- Quantity: 2
- Transmission support to engine
- Tightening specifications and sequence. Refer to TRANSMISSION SUPPORT TO ENGINE AND BEVEL BOX .
NOTE:
Pay attention to the "characteristics of the bevel box". Refer to BEVEL BOX, DIFFERENTIATING .
