Bevel Box, Differentiating

The bevel boxes "0CN" or "0FN" can be installed in the vehicle.

The bevel boxes can be differentiated as follows:

Differentiation: Bevel box installed:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

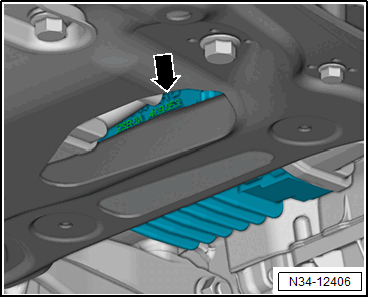

The bevel box is identified by a cut-out -arrow- near the right area of the subframe.

If necessary remove the following components:

-- Noise insulation. Refer to Noise Insulation .

-- Center underbody trim panel. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .

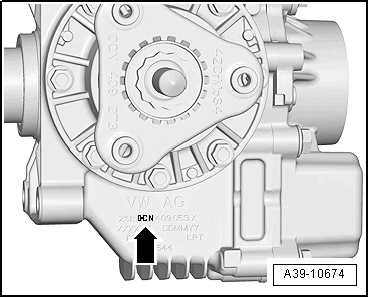

The area indicated by the -arrow- has either the "0CN" or "0FN" designation.

Fig 1: Locating Bevel Box Identification

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Additional differentiation: bevel box removed:

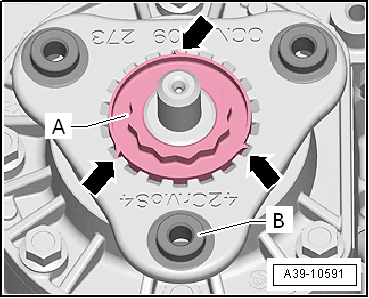

Fig 2: Securing Twelve-Point Nut -A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The output flange on the "0CN" bevel box is secured with a nut -A-. See the Overview - Bevel Box, "0CN". Refer to OVERVIEW - BEVEL BOX COMPONENTS .

Ignore -B- and -arrows-.

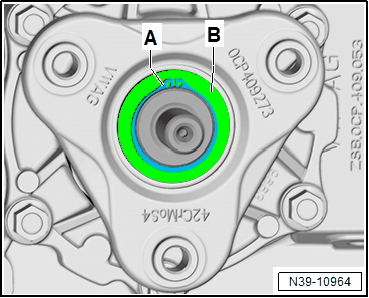

The output flange on the bevel box "0FN" is secured with a circlip -A- → Overview - Bevel Box "0FN". Refer to OVERVIEW - BEVEL BOX COMPONENTS .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A washer -B- is located behind the circlip -A-.
