Rear Axle Toe, Adjusting

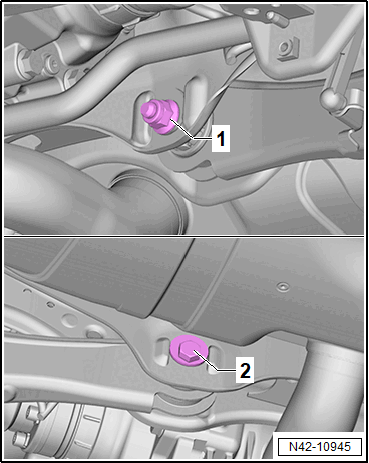

-- Loosen the nut -1-.
-- Turn the eccentric screw -2- until the specified value is reached.
CAUTION:
The maximum adjustment range is 90° to left or right of center position.
-- Tighten the nut -1-.
-- After the nut -1- is tightened, check the toe value once more. Refer to AXLE ALIGNMENT SPECIFIED VALUES .
Tightening Specifications
- Refer to OVERVIEW - TRANSVERSE LINK
