Rear Axle Camber, Adjusting

Special tools and workshop equipment required

• Insert Tool - 18mm:T10179
  Fig 1: Insert Tool - 18mm

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

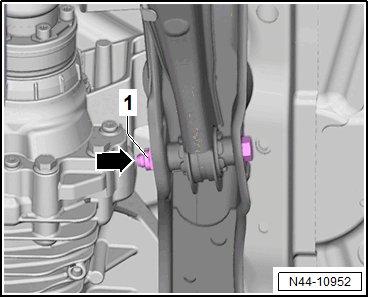

-- Loosen the nut -1- of the threaded connection on the upper transverse link at subframe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Adjust the camber by turning the hex fitting of the eccentric screw -arrow-.

-- Tighten the nut -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

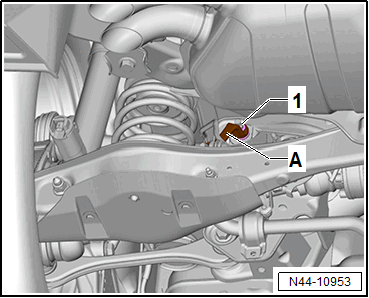

-- Use the Insert Tool - 18mm:T10179  -A- for this.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tighten the nut to 80 Nm using the Insert Tool - 18mm:T10179

-- Check the camber value again after tightening the nut -1-.

-- After the nut -1- is tightened, check the camber value once more. Refer to AXLE ALIGNMENT SPECIFIED VALUES .

Tightening Specifications

• Refer to OVERVIEW - TRANSVERSE LINK
