Overview - Ignition System
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The Engine Speed Sensor -G28- is located on the cylinder block. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .

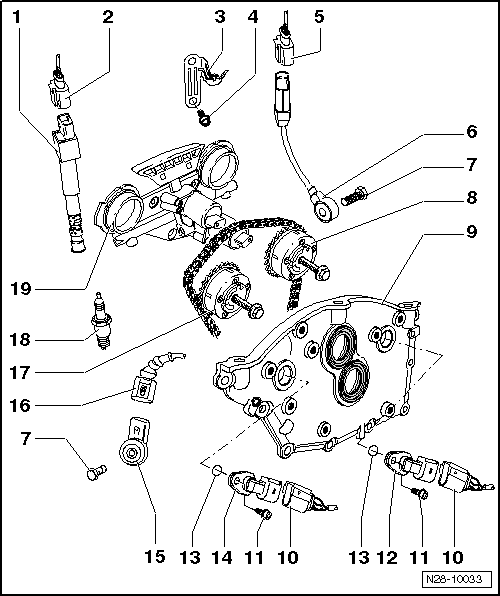

- Ignition Coils with Power Output Stage -N70, N127, N291, N292, N323, N324-
- Removing and Installing. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .
- Ignition sequence. Refer to CYLINDER NUMBERING .
- Connector
- Black
- Use the Elbow Assembly Tool: T10118 to remove
- Bracket
- For the Knock Sensor 1 - G61- connector
- 20 Nm
- Connector
- Black, 3-pin
- Gold plated sensor contacts and connector contacts
- Knock Sensor 1 -G61-
- Component location: cylinder block exhaust side
- 20 Nm
- The tightening specifications affect function of the knock sensor
- Exhaust Camshaft Adjuster
- Identification: 32A
- With sensor wheel for the Camshaft Position Sensor 2 - G163-
- Removing and Installing. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .
- Cover
- Connector
- black, 3-pin
- Gold plated sensor contacts and connector contacts
- Mark the connector before disconnecting
- 10 Nm
- Camshaft Position Sensor 2 -G163-
- For the exhaust camshaft
- Gold plated sensor contacts and connector contacts
- Seal
- Always replace after removal
- Camshaft Position Sensor -G40-
- For the intake camshaft
- Gold plated sensor contacts and connector contacts
- Knock Sensor 2 -G66-
- Component location: cylinder block intake side
- Gold plated sensor contacts and connector contacts
- Connector
- black, 2-pin
- Gold plated sensor contacts and connector contacts
- Intake Camshaft Adjuster
- Identification: 24E
- With sensor wheel for the Camshaft Position Sensor -G40-
- Removing and Installing. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .
- Spark Plug, 18 Nm
- Remove and install using the Spark Plug Removal Tool:3122B
- Timing Chain Cover
- For the camshaft adjustment
- Removing and Installing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .
