Engine Speed Sensor -G28-, REMOVING AND INSTALLING

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

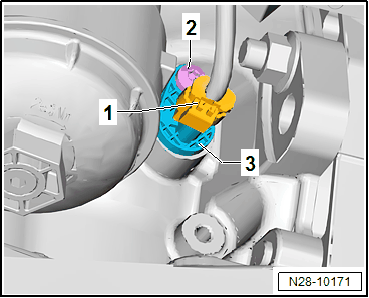

-- Remove the connector -1- from the Engine Speed Sensor -G28-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screw -2- and remove the engine speed sensor -3- by gently rotating.

Installing:

Install in reverse order of removal while noting the following:

-- Replace the seals and coat them lightly with clean engine oil.

-- Do not tilt the engine speed sensor -3- when installing.

-- Install the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

Tightening specification:

Component	Tightening Specification
Speed sensor bolt	8 Nm
