Knock Sensor 2 -G66-, REMOVING AND INSTALLING

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the coolant thermostat. Refer to COOLANT THERMOSTAT, REMOVING AND INSTALLING .

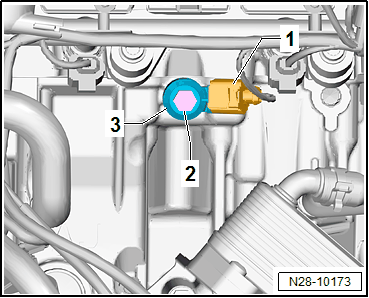

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- and then the Knock Sensor 2 -G66-.

Installing:

Install in reverse order of removal while noting the following:

Tightening Specifications:

Refer to OVERVIEW - IGNITION SYSTEM
