Knock Sensor 1 -G61-, REMOVING AND INSTALLING

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The Knock Sensor 1 -G61- is located under the exhaust manifold.

Removing

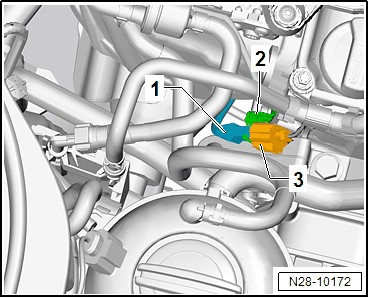

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cable -1- from the bracket -2-.

-- Remove the right front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

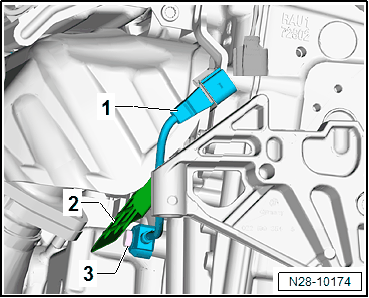

-- Bend up the heat shield -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -3- and then the Knock Sensor 1 -G61-.

Installing:

Install in reverse order of removal while noting the following:

Tightening Specifications:

Refer to OVERVIEW - IGNITION SYSTEM
