Engine, Securing To Engine And Transmission Holder

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tools - Engine, Removal And Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Spring Clip Pliers
Engine and Gearbox Bracket:VAS 6095A with Engine Support:3269
Shop Crane:VAS 6100
Shop Crane - Drip Tray:VAS 6208

Secure the engine to the Engine and Gearbox Bracket:VAS 6095A when working on the engine.

When a repair is to be performed on the chain drive, use the Engine Support:3269 .

Procedure

-- Remove transmission. Refer to ENGINE AND TRANSMISSION, SEPARATING .

-- Engage the Lifting Tackle:3033 as follows and lift out of the engine using the Shop Crane:VAS 6100 from the Engine/Gearbox Jack:V.A.G 1383 A .

Fig 2: Engaging Engine Sling 3033 & Lifting Engine Using Shop Crane VAS 6100

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vibration damper side: item 3.

Drive plate side: item 11.

When using the Engine and Gearbox Bracket:VAS 6095A with the universal mounts:

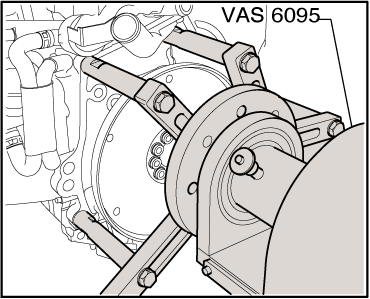

Fig 3: Identifying Engine And Transmission Holder VAS 6095

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the engine to the Engine and Gearbox Bracket:VAS 6095A as shown.

When using the Engine Support:3269

Fig 4: Identifying Engine Support 3269 Tightly Bolted To Cylinder Block

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the Engine Support:3269 as shown on the cylinder block.
