Engine And Transmission, Separating

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

AWD vehicles

-- Remove the bevel box. Refer to BEVEL BOX, REMOVING .

All Vehicles

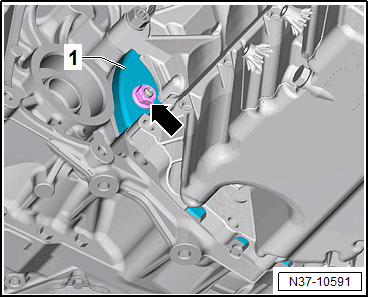

-- Remove the six converter nuts -arrow- using the Socket - Sw15:V/175 .

Fig 1: Torque Converter

GWWN37-10591

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

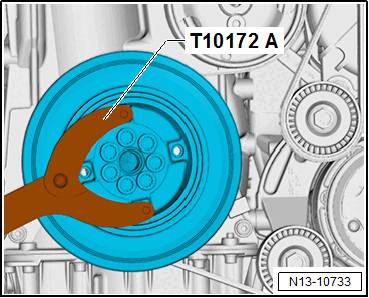

-- To do so, turn the engine 60° in the direction of engine rotation using the Counterhold - Multiple Use:T10172A .

GWWN13-10733

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The torque converter will be pulled out when the transmission is separated from the engine if all 6 nuts are not removed!

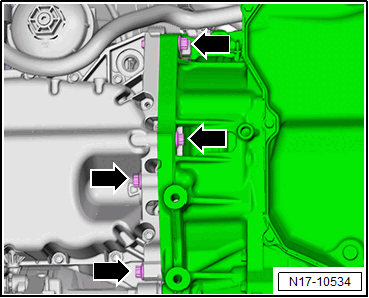

-- Remove the transmission/oil pan bolts -arrows-.

GWWN17-10534

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

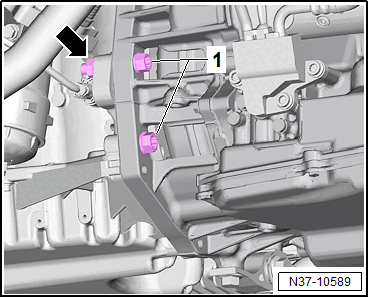

-- Remove the front engine to transmission bolts -1-. The upper bolt is secured with a nut -arrow-.

GWWN37-10589

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

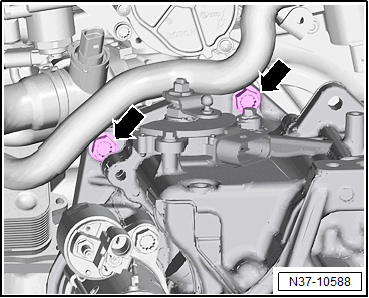

-- Remove the upper transmission/engine bolts -arrows- using a 12-point socket.

GWWN37-10588

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

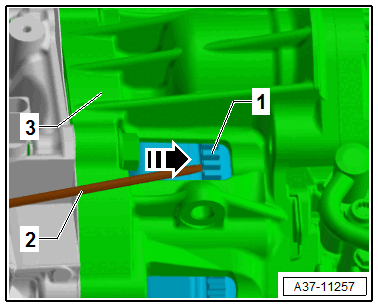

-- Remove the transmission -3- from the engine, while doing so push the torque converter -1- with for example a screwdriver -2- against the transmission -direction of the arrow-.

GWWA37-11257

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- After removing the transmission secure the torque converter from falling.
