Transmission Mount, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .
-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

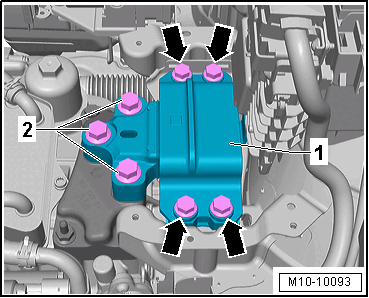

-- Remove the bolts -2-, then the bolts -arrows- and remove the transmission mount -1-.
