Assembly Mount, Checking Adjustment

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Procedure

The following dimensions must be attained:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

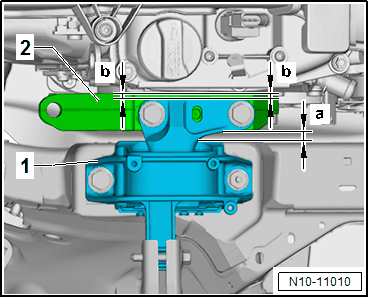

The clearance between the engine support -2- and the engine mount -1- must be -a- = 10 mm.
The casting edge on the engine support must be parallel to the engine mount support arm. Dimension -b-.

NOTE:

Distance -a- = 10 mm can also be checked with corresponding round stock.

-- If the distance measured is too small or too large, adjust the subframe. Refer to ASSEMBLY MOUNT, ADJUSTING .
