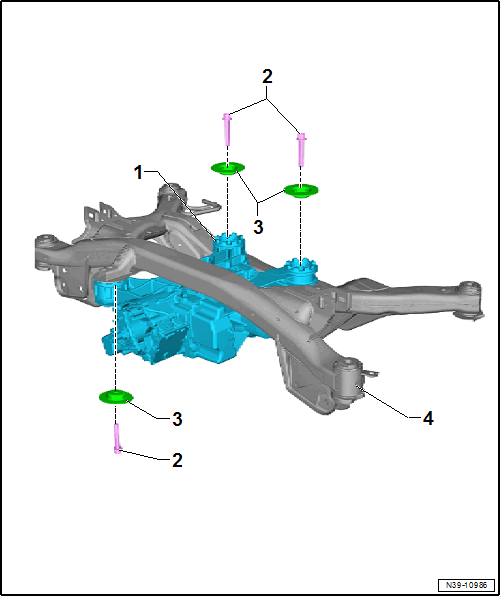

Overview - Final Drive
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Final Drive
- Removing and installing. Refer to FINAL DRIVE, REMOVING AND INSTALLING .
- Bonded Rubber Bushing, Removing and installing. Refer to BONDED RUBBER BUSHING, REMOVING AND INSTALLING .
- Bolts
- 60 Nm +180°
- Always replace after removing.
- Stop Washers
- Installation position. Refer to Installing
- Rear Subframe
