Overview - Battery, Vehicles Without Main Fuse Panel

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

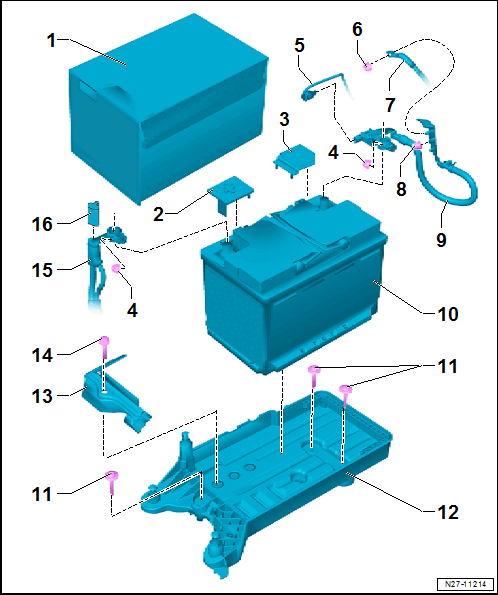

Fig 1: Exploded View Of Battery Components (Vehicles Without Main Fuse Panel)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Heat Shield Boot
Cover
- For positive terminal
- Not installed on all vehicles
Cover
- For negative terminal
Nut
- 6 Nm
Connector
- For the Battery Monitoring Control Module -J367-
- Follow the sequence when connecting the ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .
Nut
- 9 Nm
Ground Wire
Nut
- 20 Nm
Ground Wire
- With battery terminal clamp and Battery Monitoring Control Module -J367-
- Battery Monitoring Control Module -J367-, Adapting. Refer to Battery Monitoring Control Module -J367-, ADAPTING .
- Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- Removing and installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING .
Battery
- Removing and installing. Refer to BATTERY, REMOVING AND INSTALLING, VEHICLES WITHOUT MAIN FUSE PANEL .
- Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- Replacing on vehicles with Start/Stop System. Refer to Vehicles with Start/Stop System .
Bolts
- Quantity: 3
- 9 Nm
Battery Tray
- Removing and installing. Refer to BATTERY TRAY, REMOVING AND INSTALLING .
Bracket
Bolt
- 20 Nm
Positive Cable
- With battery terminal clamp
- Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
Cap
- For positive cable
