Overview - Shift Forks With Reverse Gear Locking Collar

GWWN34-11698Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The -arrow- Points to the Reverse Gear Locking Collar

NOTE:

The shift fork group does not need to be disassembled to remove and install shift segments, lock washers and angular contact ball bearings.

Shift Forks, Servicing. Refer to SHIFT FORKS, SERVICING .

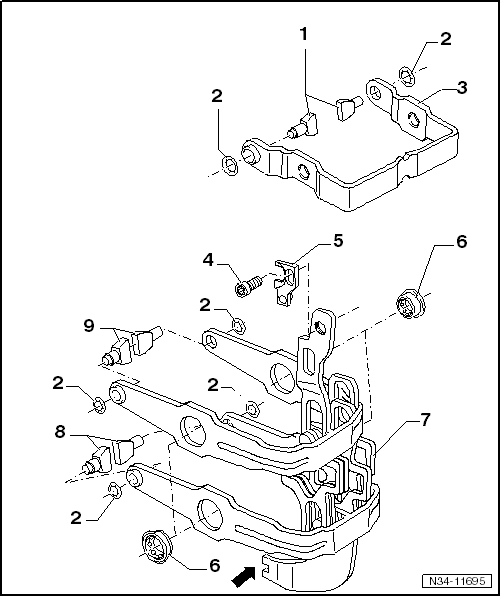

GWWN34-11695Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. 5th/6th Gear Shift Segment
    • Identification. Refer to Figure.
    • The shift segment must still rotate easily after the lock washer is installed.
  2. Lock Washer
    • Replace after removing
    • Removing. Refer to Figure.
    • Installing. Refer to Figure.
  3. 5th/6th Gear Shift Fork
  4. Bolt
  5. 5th/6th Gear Shift Jaw
  6. Angular Contact Ball Bearing
    • Removing. Refer to Figure.
    • Bearing Inner Race, Installing in Outer Race. Refer to Figure.
    • Installing. Refer to Figure.
    • Quantity: 4
  7. Shift Fork Group with Gearshift Rails
    • With gearshift rail for the reverse gear shift mechanism -arrow-
  8. 1st/2nd Gear Shift Segment
    • Identification. Refer to Figure.
    • The shift segment must still rotate easily after the lock washer is installed.
  9. 3rd/4th Gear Shift Segment
    • Identification. Refer to Figure.
    • The shift segment must still rotate easily after the lock washer is installed.
