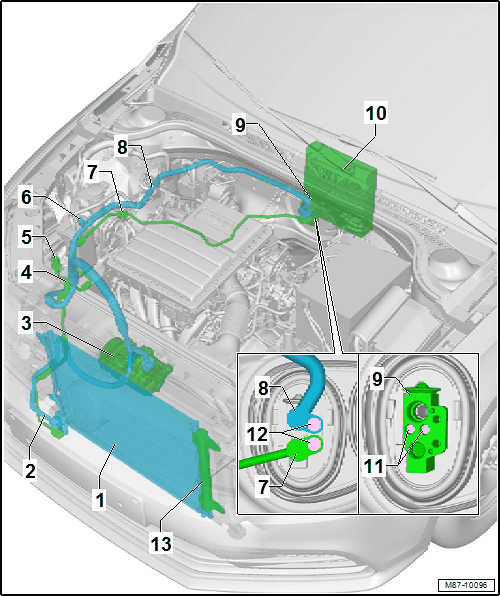

System Overview - Refrigerant Circuit
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Condenser
- Overview. Refer to OVERVIEW - CONDENSER .
- Removing and installing. Refer to CONDENSER, REMOVING AND INSTALLING .
- Refrigerant Line - High Pressure Side
- From the condenser to A/C compressor
- Removing and installing. Refer to REFRIGERANT LINE FROM CONDENSER TO A/C COMPRESSOR, REMOVING AND INSTALLING .
- A/C Compressor
- Overview. Refer to OVERVIEW - A/C COMPRESSOR POWER UNIT .
- Removing and installing from the bracket. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
- Removing and installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
- High Pressure Side Service Connection
- Cap: 0.4 Nm
- Valve: 2 Nm
- Refrigerant Capacities. Refer to REFRIGERANT CAPACITIES .
- Refrigerant Oil Capacities. Refer to REFRIGERANT OIL CAPACITIES .
- Removing and installing. Refer to EVACUATING AND CHARGING VALVE, REMOVING AND INSTALLING, LOW AND HIGH PRESSURE SIDE .
- High Pressure Sensor -G65-
- 8 Nm
- Removing and installing. Refer to High Pressure Sensor -G65-, REMOVING AND INSTALLING .
- Low Pressure Side Service Connection
- Cap: 0.4 Nm
- Valve: 2 Nm
- Refrigerant Capacities. Refer to REFRIGERANT CAPACITIES .
- Refrigerant Oil Capacities. Refer to REFRIGERANT OIL CAPACITIES .
- Removing and installing. Refer to EVACUATING AND CHARGING VALVE, REMOVING AND INSTALLING, LOW AND HIGH PRESSURE SIDE .
- Refrigerant Line - High Pressure Side
- From condenser to evaporator
- Removing and installing. Refer to REFRIGERANT LINE FROM CONDENSER TO EVAPORATOR, REMOVING AND INSTALLING .
- Refrigerant Line - Low Pressure Side
- From the A/C compressor to the evaporator
- Removing and installing. Refer to REFRIGERANT LINE FROM A/C COMPRESSOR TO EVAPORATOR, REMOVING AND INSTALLING .
- Expansion Valve
- Functions. Refer to EXPANSION VALVE, REMOVING AND INSTALLING
- Removing and installing. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
- Evaporator
- Check insulation, it must be completely present
- Overview - Evaporator Housing. Refer to OVERVIEW - EVAPORATOR HOUSING .
- Removing and installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
- Bolts
- 5 Nm
- Bolts
- 10 Nm
- Desiccant Bag/Dryer Cartridge
- Removing and installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
