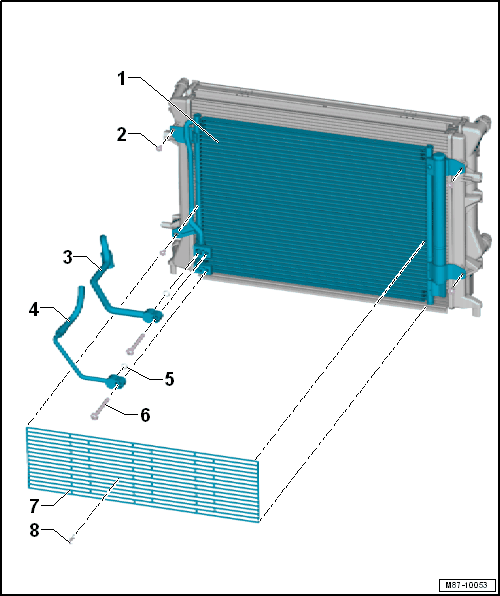

Overview - Condenser
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Condenser
- Removing and installing. Refer to CONDENSER, REMOVING AND INSTALLING .
- Bolts
- 5 Nm
- Quantity: 4
- Refrigerant Line
- Removing and installing. Refer to REFRIGERANT LINE FROM CONDENSER TO A/C COMPRESSOR, REMOVING AND INSTALLING .
- Refrigerant Line
- Removing and installing. Refer to REFRIGERANT LINE FROM CONDENSER TO EVAPORATOR, REMOVING AND INSTALLING .
- Seal
- Replace after removing.
- Coat with refrigerant oil before installing.
- Quantity: 2
- Bolts
- 12 Nm
- Quantity: 2
- Grille
- Clip
