Differential, Disassembling And Assembling: Notes

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Outer Race/Tapered Roller Bearing, Removing from Clutch Housing

Fig 1: Driving Tapered Roller Bearing Outer Race Out Of Clutch Housing Using Special Tools VW 408 & VW 473

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Before removing, remove the right flange shaft seal. Refer to OVERVIEW - DIFFERENTIAL .

Outer Race/Tapered Roller Bearing, Installing in Clutch Housing

Fig 2: Identifying Outer Race/Tapered Roller Bearing Pressed Into Clutch Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

There is no adjusting shim on the side of the clutch housing.

Inner Races/Tapered Roller Bearings, Removing

Fig 3: Identifying Tool Assembly To Pull Off Inner Races/Tapered Roller Bearing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Before installing the puller, mount the : 40-105 onto the differential housing.

NOTE:

Both tapered roller bearing inner races are removed from the differential housing in the same way.

Inner Races/Tapered Roller Bearings, Installing

Fig 4: Identifying Tool Assembly To Press In Inner Races/Tapered Roller Bearing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Inner race/tapered roller bearing for transmission housing and clutch housing are installed using the same special tools

Outer Race/Tapered Roller Bearing, Removing from Transmission Housing

Fig 5: Identifying Outer Race/Tapered Roller Bearing Pulled Out Of Transmission Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A - Counter Support, for example, : VAS251623

B - Internal Puller, for example, : VAS251615

Outer Race/Tapered Roller Bearing, Installing in Transmission Housing

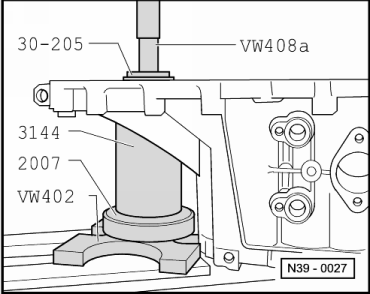

Fig 6: Identifying Tool Assembly To Press In Outer Race/Tapered Roller Bearing Into Transmission Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the washer under the outer race.

-- Support the transmission housing with the : 3144 directly under the bearing mount.

Differentiating the Spring Pins

Fig 7: Differentiating Spring Pins

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Dimension "a" mm	Identifying Feature
28.5 (short tension sleeve), Removing and installing. Refer to Fig 9.	Groove all the way around -arrows-
36.0 (long spring pin), Refer to Figure for removing and Figure, for installing.	No surrounding groove

Differential Housing Allocation

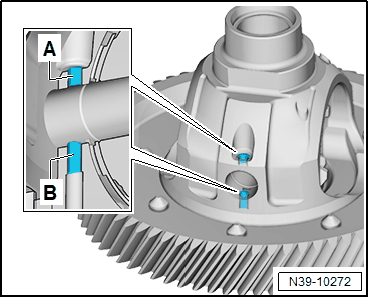

Fig 8: Differential Housing Allocation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the hole in the differential housing for the spring pin.

The hole in the differential housing was modified due to the longer adapter sleeve.

Hole	Spring Pin Length (mm)
-A-	28.5 (short adapter sleeve)
-A- and -B-	36.0 (long adapter sleeve)

Adapter Sleeve with Surrounding Groove (Short Adapter Sleeve): Removing and Installing

Fig 9: Driving Out Spring Pin With Chisel, Inserting Chisel Into Circumferential Groove

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
