Engine, Securing To Engine And Transmission Holder

Special tools and workshop equipment required

Procedure

The transmission is separated from the engine. Refer to ENGINE AND TRANSMISSION, SEPARATING .

-- Engage the : 2024A on engine and on : VAS6100 as shown.

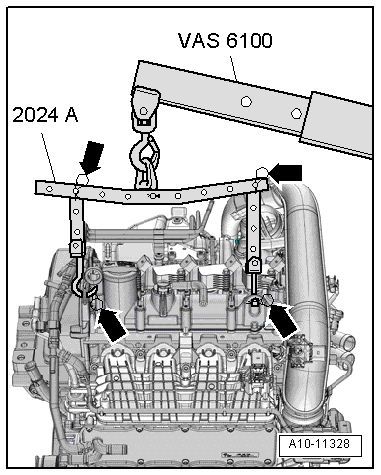

Fig 1: Identifying Engine Sling 2024A on engine and on Shop Crane VAS6100

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The rail with holes must be inserted as shown to align it to the center of gravity of the assembly.

Lifting hooks and pins on the engine sling must be secured with securing pins -arrows-.

-- Lower the engine from the : T10497 using the : VAS6100 .

-- Secure the engine with the pins -arrows- on the : VAS6095A as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
