Windshield Wiper Arms, Adjusting

Procedure

Adjusting is described as an example for a LHD vehicle.

-- Switch the ignition on.

-- Activate "one-touch wiping" and let the windshield wiper arms run into their end position.

-- Switch off the ignition.

-- Loosen the windshield wiper arms. Refer to Windshield Wiper Arms, Removing and Installing  .

-- Perform the wiper arm adjustment.

Driver side

Conditions

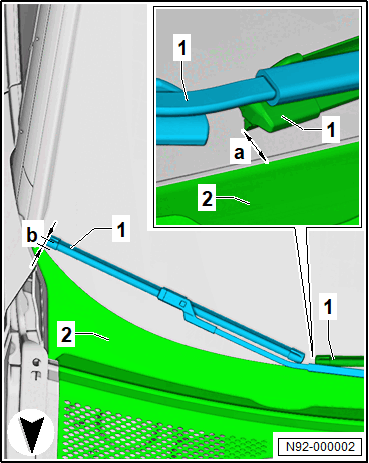

• Distance -a- from the end of the wiper blade to the plenum chamber cover -2- to the lower edge of the windshield must be 12 mm.

-- Adjust the end position of the wiper blade by repositioning the wiper arms -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for all vehicles

Front passenger side

Conditions

• Distance -b- from the end of the wiper blade to the plenum chamber cover -2- to the lower edge of the windshield must be 13 mm.

-- Adjust the end position of the wiper blade by repositioning the wiper arms -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for all vehicles

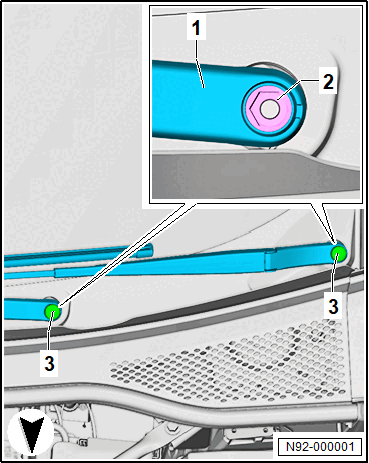

-- Tighten the nuts -2- from the windshield wiper arms -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch the ignition on.

-- Activate "one-touch wiping" and let the windshield wiper arms -1- run into their end position.

-- Switch off the ignition.

-- Check the wiper arm adjustment -1-.

-- Press the caps -3- on the wiper arms -1-.

Tightening Specifications

• Refer to Overview - Windshield Wiper System  .
