Overview - Windshield Wiper System
WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

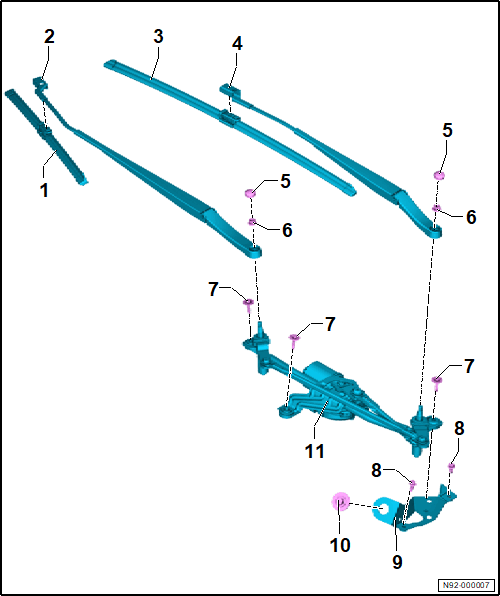

The overview is described as an example for a LHD vehicle
- Front Passenger Side Wiper Blade
- Refer to Wiper Blade, Removing and Installing .
- Front Passenger Side Windshield Wiper Arm
- Refer to Windshield Wiper Arms, Removing and Installing .
- Refer to Windshield Wiper Arms, Adjusting .
- Driver Side Wiper Blade
- Refer to Wiper Blade, Removing and Installing .
- Driver Side Windshield Wiper Arm
- Refer to Windshield Wiper Arms, Removing and Installing .
- Refer to Windshield Wiper Arms, Adjusting .
- Cap
- Quantity: 2
- Nut
- Quantity: 2
- 20 Nm
- Bolt
- Quantity: 3
- Tightening specifications and sequence Refer to Fig 2
- Bolt
- Quantity: 2
- 8 Nm
- Securing Bracket
- Bolt
- 20 Nm
- Wiper Motor Control Module -J400-
- With the Windshield Wiper Motor -V-
- With Windshield Wiper Stop Switch -F229-
- Refer to Windshield Wiper Motor V, Removing and Installing .

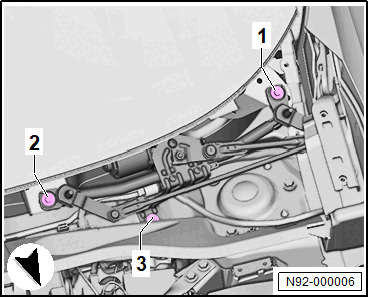

Windshield Wiper Motor - Tightening Specification and Sequence
| Step | Component | Tightening specification/additional turn |
|---|---|---|
| 1. | -1-, -2- and -3- | Install all the way by hand |
| 2. | -1-, -2- and -3- | 8 Nm |
