Component Location Overview - Abs/Esp

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

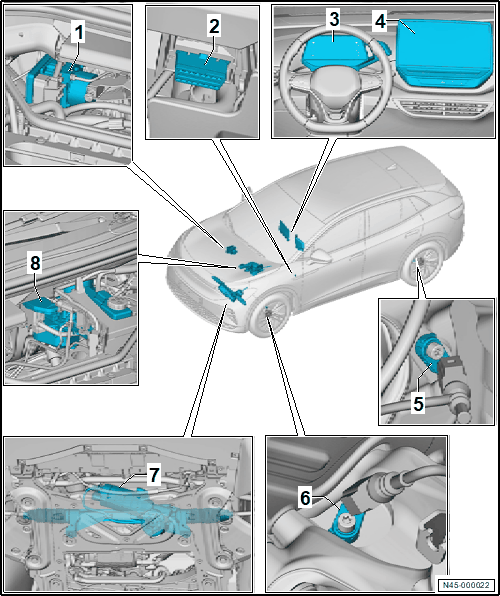

ABS Control Module -J104- /ABS Hydraulic Unit -N55-
- Component location in RHD vehicles: vehicle front end on the passenger side
- Refer to Overview - Control Module and Hydraulic Unit .
- Refer to Control Module for ABS J104/Hydraulic Unit for ABSN55, Removing and Installing .
Data Link Connector
Driver Information System Control Module with Display Unit -J1254-
- With Brake Pad Wear Indicator Lamp -K32-
- With ABS Indicator Lamp -K47-
- With ASR/ESP Indicator Lamp -K155-
- With the Brake System Indicator Lamp -K118-
- Refer to DRIVER INFORMATION SYSTEM CONTROL MODULE WITH DISPLAY UNIT -J1254-, REMOVING AND INSTALLING .
Front Information Display Control Head -J685-
- Refer to FRONT INFORMATION DISPLAY CONTROL HEAD CONTROL MODULE -J685-, REMOVING AND INSTALLING
Right Rear ABS Wheel Speed Sensor -G44- /Left Rear ABS Wheel Speed Sensor -G46-
- Refer to Overview - Rear Axle Speed Sensor .
- Refer to Right and Left Rear ABS Wheel Speed Sensor G44/G46, Removing and Installing .
Right Front ABS Wheel Speed Sensor -G45- /Left Front ABS Wheel Speed Sensor -G47-
- Refer to Overview - Front Axle Speed Sensor .
- Refer to Right and Left Front ABS Wheel Speed Sensor G45/G47, Removing and Installing .
Power Steering Control Module -J500-
- With Steering Angle Sensor -G85- in Steering Gear
- Cannot be replaced separately
- G85
- Refer to STEERING GEAR, REMOVING AND INSTALLING, AWD .
- Refer to STEERING GEAR, REMOVING AND INSTALLING, RWD .
Brake Booster
- Refer to Overview - Brake Booster/Brake Master Cylinder .
- Refer to Brake Booster, Removing and Installing .
