Overview - Rear Axle Speed Sensor

The overview shows the left side of the vehicle as an example

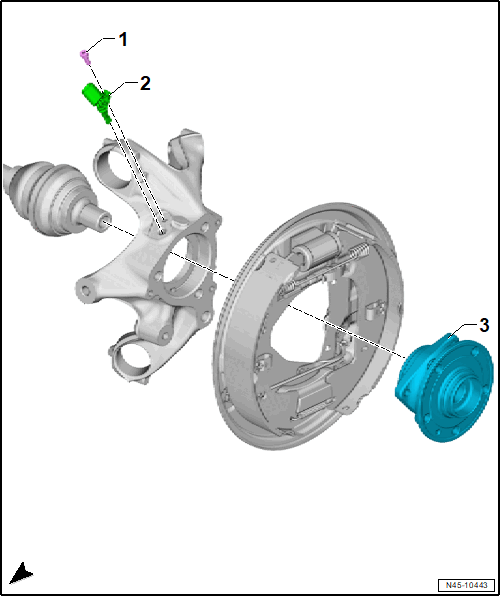

Fig 1: Exploded View Of Rear Axle Speed Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • 8 Nm
2. Left Rear ABS Wheel Speed Sensor -G46- / Right Rear ABS Wheel Speed Sensor -G44-
   • Refer to Right and Left Rear ABS Wheel Speed Sensor G44/G46, Removing and Installing  .
3. Wheel Bearing Unit
   • With sensor ring for ABS.
   • Refer to ABS Sensor Ring, Checking
   • Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
