Overview - Door

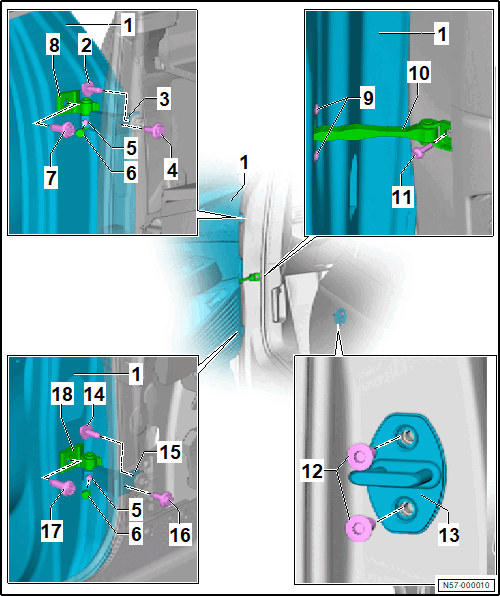

The overview shows the left side of the vehicle as an example

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Door
   • Refer to Door, Removing and Installing  .
   • Refer to Door, Adjusting  .
2. Bolt
   • Replace after removing
   • 20 Nm + 90°
3. Door Hinge Lower Section
   • Refer to Door Hinge, Removing and Installing  .
4. Bolt
   • Replace after removing
   • 20 Nm + 90°
5. Threaded Pin
   • 27 Nm
6. Cap
7. Bolt
   • 50 Nm
8. Door Hinge Upper Section
   • Refer to Door Hinge, Removing and Installing  .
9. Bolt
   • Quantity: 2
   • 8 Nm
10. Door Arrester
    • Refer to Door Arrester, Removing and Installing  .
11. Bolt
    • 30 Nm
12. Bolt
    • Quantity: 2
    • Tightening specification and sequence. Refer to Fig 1.
13. Striker
    • Refer to Striker, Removing and Installing  .
    • Refer to Striker, Adjusting  .
14. Bolt
    • Replace after removing
    • 20 Nm + 90°
15. Door Hinge Lower Section
    • Refer to Door Hinge, Removing and Installing  .
16. Bolt
    • Replace after removing
    • 20 Nm + 90°
17. Bolt
    • 50 Nm
18. Door Hinge Upper Section
    • Refer to Door Hinge, Removing and Installing  .

Tightening specifications and sequence

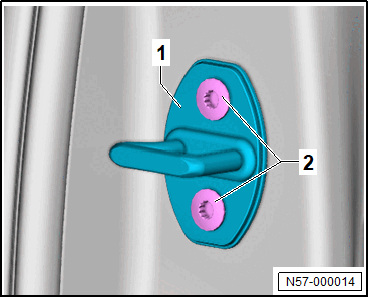

Fig 1: Door Striker

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
