Door, Adjusting

Special tools and workshop equipment required

The procedure is described on a LHD vehicle as an example.

Preparing

Requirement

When adjusting the door, the vehicle must be resting on its wheels on a level surface.
The door must engage in the striker without great force.

The door is correctly installed, when it is closed and:

The procedure shown is for the left side of the vehicle as an example.

Gap dimensions, adjusting

Driver side

-- Loosen and lower the Fuse Panel C -SC-. Refer to Fuse Panel C -SC-, REMOVING AND INSTALLING .

Front passenger side

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

Continuation for all vehicles

-- Remove the lower A-pillar trim panel. Refer to A-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING .

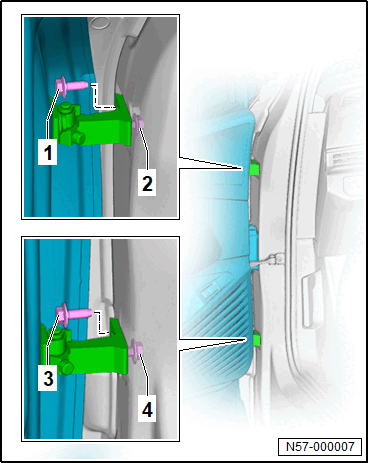

-- Loosen the bolts -1-, -2-, -3- and -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the gap dimensions using the Gauge - Gap Adjustment: 3371 . For this, pay attention to the CENTER BODY .

-- Tighten the bolts -1-, -2-, -3- and -4-.

Flush dimension, adjusting

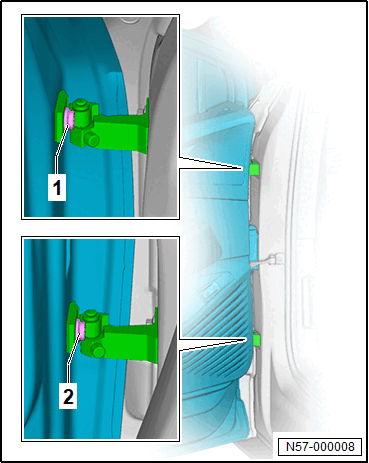

-- Loosen the bolts -1- and -2- using the Wrench - Door Adjusting: 3320 and the respective bit.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the gap dimensions using the Gauge - Gap Adjustment: 3371 . For this, pay attention to the CENTER BODY .

-- Tighten the bolts -1- and -2-.

Tightening Specifications
