Component Location Overview - Electrical Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

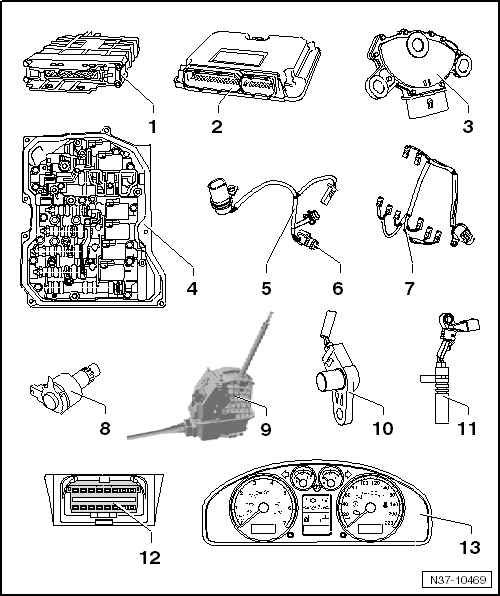

1. Transmission Control Module -J217-
   • The control module sends and receives data from the Data BUS
   • Component Location. Refer to Fig 1.
   • Removing and Installing. Refer to TRANSMISSION CONTROL MODULE, REMOVING AND INSTALLING .
2. Engine Control Module
   • The control module sends and receives data from the Data BUS
   • Component location and removing and installing. Refer to ENGINE CONTROL MODULE -J623-, REMOVING AND INSTALLING .
3. Multifunction Transmission Range Switch -F125-
   • Component location. Refer to Fig 2.
   • Removing and installing. Refer to MULTIFUNCTION TRANSMISSION RANGE SWITCH, REMOVING AND INSTALLING .
   • Adjusting. Refer to MULTIFUNCTION TRANSMISSION RANGE SWITCH, ADJUSTING .
4. Valve Body
   • Component location. Refer to Fig 3.
   • Removing and installing. Refer to VALVE BODY, REMOVING AND INSTALLING .
   • Allocation. Refer to the Parts Information.
5. Sensor Wiring Harness
   • 8-pin wiring harness
   • With Transmission Fluid Temperature Sensor -G93-
   • Component location. Refer to Fig 4.
   • Removing and installing. Refer to SOLENOID VALVE AND SENSOR WIRING HARNESS, REMOVING AND INSTALLING .
   • Allocation. Refer to the Parts Information.
6. Transmission Fluid Temperature Sensor -G93-
   • Component location. Refer to Fig 4.
7. Solenoid Valve Wiring Harness
   • Wiring harness, 14-pin
   • Component location. Refer to Fig 5.
   • Removing and installing. Refer to SOLENOID VALVE AND SENSOR WIRING HARNESS, REMOVING AND INSTALLING .
   • Allocation. Refer to the Parts Information.
8. Shift Lock Solenoid -N110-
   • Component location: the shift lock solenoid is located in the selector mechanism.
9. Selector Mechanism
   • With the Tiptronic Switch -F189-
   • The Tiptronic Switch -F189- is a component of the selector mechanism.
   • Replace the selector mechanism if faulty. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
10. Transmission Input Speed Sensor -G182-
    • Component location. Refer to Fig 6.
    • Removing and installing. Refer to Transmission Input Speed Sensor -G182- AND Transmission Output Speed Sensor -G195-, REMOVING AND INSTALLING .
11. Transmission Output Speed Sensor -G195-
    • Component location. Refer to Fig 6.
    • Removing and installing. Refer to Transmission Input Speed Sensor -G182- AND Transmission Output Speed Sensor -G195-, REMOVING AND INSTALLING .
12. Data Link Connector
    • Component location. Refer to Fig 7.
13. Transmission Range Display -Y6-
    • Component location. Refer to Fig 8.
    • Removing and installing. Refer to OVERVIEW - INSTRUMENT CLUSTER .

Transmission Control Module J217 arrow

Fig 1: Identifying Transmission Control Module (TCM) J217

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: The control module is located in left front wheel housing.

Multifunction Transmission Range Switch F125

Fig 2: Identifying Multi-Function Transmission Range (TR) Switch F125

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: The multifunction transmission range switch is located on the top side of the transmission.

Valve Body

Fig 3: Identifying Valve Body

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: the valve body is bolted onto the bottom of the transmission housing and is covered by the transmission fluid pan.

The Solenoid Valve 1 -N88-, Solenoid Valve 2 -N89-, Solenoid Valve 3 -N90-, Solenoid Valve 4 -N91-, Solenoid Valve 5 -N92-, Solenoid Valve 6 -N93-, Solenoid Valve 9 -N282- and Solenoid Valve 10 -N283- are secured on the valve body.

Sensor Wiring Harness

Fig 4: Identifying Wiring Harness, 8-Pin

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• 8-pin wiring harness
• With integrated Transmission Fluid Temperature Sensor -G93- -arrow-.

Component location: the wiring harness is secured to the valve body in the transmission.

Solenoid Valve Wiring Harness

Fig 5: Identifying Wiring Harness, 14-Pin

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Wiring harness, 14-pin

Component location: the wiring harness is secured to the valve body in the transmission.

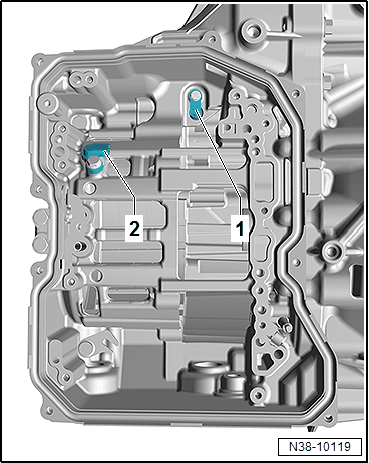

Transmission Input Speed Sensor G182 and Transmission Output Speed Sensor G195

Fig 6: Transmission Input Speed Sensor -G182- and Transmission Output Speed Sensor -G195-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: the sensors are installed above the valve body in the transmission housing.

1 -  Transmission Output Speed Sensor -G195-

2 -  Transmission Input Speed Sensor -G182-

Data Link Connector

Fig 7: Data Link Connector (DLC)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: the data link connector -arrow- is located on the left under the driver side storage compartment

Transmission Range Display Y6

Fig 8: Identifying Transmission Range (TR) Display Y6

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: inside the instrument cluster
