Overview - Microphone In Front Roof Console

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

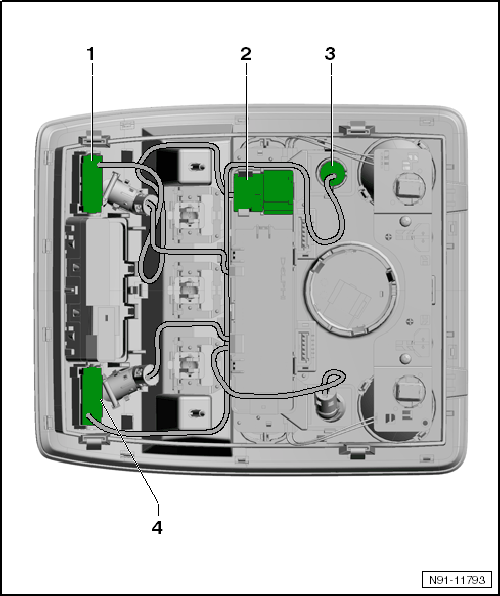

Fig 1: Exploded View Of Microphone In Front Roof Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Front Microphone -R140-
- Radio and telephone speech recognition system microphone
- Removing and installing. Refer to MICROPHONES, REMOVING AND INSTALLING, INFOTAINMENT SYSTEM
Microphone Connector for Wire Connections
Interior Microphone -R74-
- For the passenger compartment noise compensation in the Digital Sound System Control Module -J525-
- Removing and installing. Refer to MICROPHONES, REMOVING AND INSTALLING, INFOTAINMENT SYSTEM
Right Front Microphone -R141-
- For the telephone
- Removing and installing. Refer to MICROPHONES, REMOVING AND INSTALLING, INFOTAINMENT SYSTEM
