Microphones, Removing And Installing, Infotainment System

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Removing :

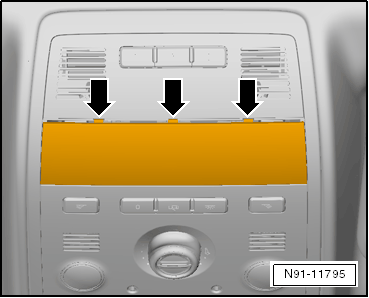

-- Unclip the interior lighting diffusion lens at the locations marked with -arrows-.

Fig 1: Identifying Interior Lighting Diffusion Lens Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

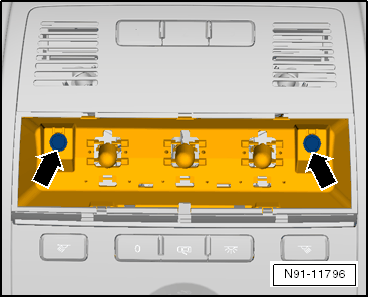

-- Remove the screws -arrows- inside the lamp.

-- Unclip the insert in the front roof console and disconnect the connector.

Microphone overview - in front roof console. Refer to OVERVIEW - MICROPHONE IN FRONT ROOF CONSOLE .

Fig 2: Identifying Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

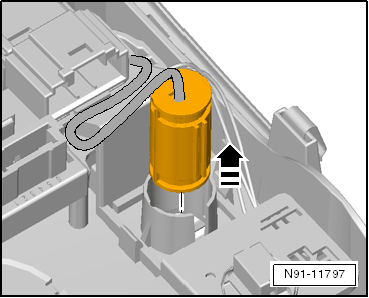

-- Remove the Interior Microphone -R74- for the noise compensation inside the passenger compartment in direction of -arrow-.

Fig 3: Identifying Interior Microphone -R74-, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

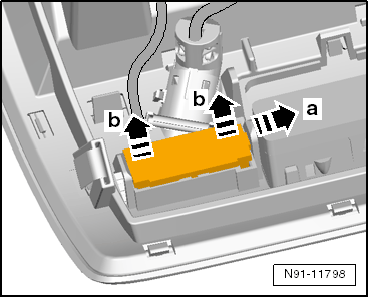

-- Move the retainer in direction of -arrow a- and remove the Left Front Microphone -R140- and Right Front Microphone -R141- evenly in direction of -arrow B-.

-- Disconnect the connector from the microphone.

Fig 4: Identifying Microphones, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing :

Install in reverse order of removal.
