DVD Changer. Removing And Installing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Radio Removal Tool: T10057
Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9 .

The DVD is only installed with the "RNS 850".

The DVD changer is an audio and video player for up to 6 DVDs or CDs.

The following file types can be played back:

Audio CD
Video CD
Audio DVD
Video DVD
CD/DVD with MP3 or WMA files

The data sent via the MOST bus is then received in PCM audio (stereo or 5.1).

Removing:

Perform the Following Steps:

-- Turn off the ignition and all electrical equipment.

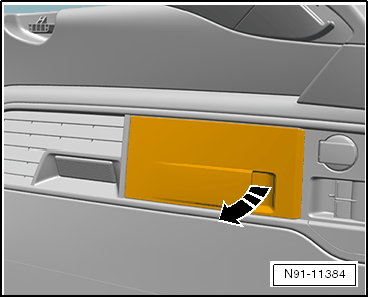

-- Open the lid in the luggage compartment in the right side panel trim in the direction of -arrow-.

Fig 1: Open The Right Side Panel Trim In The-Direction Of The Arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

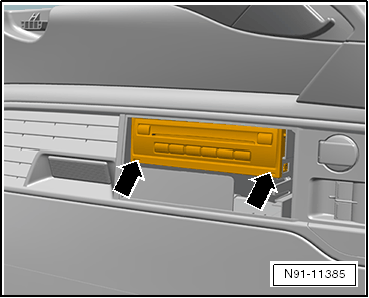

-- Insert the Radio Removal Tools: T10057 into the release slots -arrows- until they engage.

Fig 2: Insert The T10057 Into The Release Slots

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

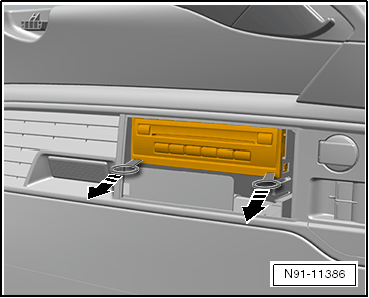

-- Pull the DVD changer via the gripping rings of the release tools in the direction of -arrow- out of the installation frame.

Fig 3: Pull The DVD Changer Via The Gripping Rings Of The Release Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the harness connectors from the DVD changer.

-- Disconnect the fiber-optic cable from the DVD changer and attach the Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9 to the disconnected fiber-optic cable connection.

NOTE:

Fiber-optic cable is very delicate!

The fiber-optic cable must not be kinked or significantly bent!

The bending radius must not be less than 25 mm.

A kinked fiber-optic cable is no longer usable, data transfer via kinked fiber-optic cable is faulty!

Please do not remove the protective caps from the ends of the fiber-optic cable until the fiber-optic cable is connected to the intended unit.

Installing:

Install in reverse order of removal.

When replacing radio navigation system control modules, it is necessary to adapt the replaced control modules to the vehicle. If this is not performed, component protection is activated for these control modules so that they do not work or only on a highly limited basis.

Adapt the control module. Refer to ANTI-THEFT COMPONENT PROTECTION .
