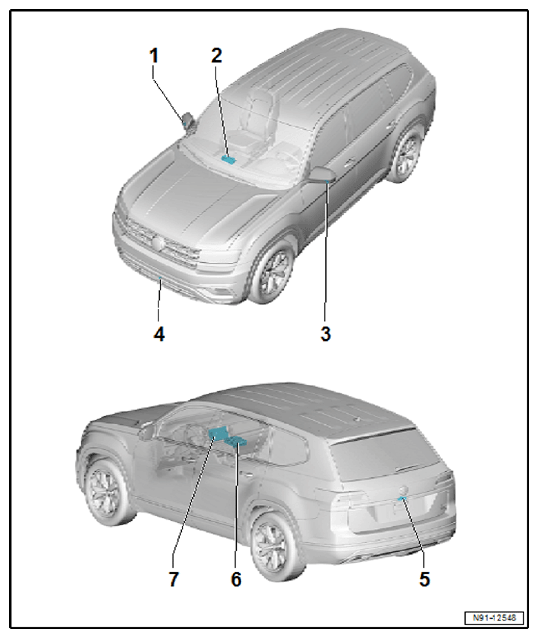

11.1 Component Location Overview - Peripheral Camera

Right Peripheral Camera - R245-
- In the right exterior rearview mirror
- Removing and Installing. Refer to 11.5 Right Peripheral Camera - R245-, Removing And Installing
- Calibrating. Refer to 11.7 Peripheral Camera, Calibrating
Peripheral Camera Control Module - J928-
- Under the right front seat
- Removing and Installing. Refer to 11.2 Peripheral Camera Control Module - J928-, Removing and Installing
- Calibrating. Refer to 11.7 Peripheral Camera, Calibrating
Left Peripheral Camera - R244-
- In the left exterior rearview mirror
- Removing and Installing. Refer to 11.4 Left Peripheral Camera - R244-, Removing and Installing
- Calibrating. Refer to 11.7 Peripheral Camera, Calibrating .
Front Peripheral Camera - R243-
- In the front bumper cover
- Removing and Installing. Refer to 11.3 Front Peripheral Camera - R243-, Removing and Installing
- Calibrating. Refer to 11.7 Peripheral Camera, Calibrating .
Rear Peripheral Camera - R246-
- Integrated in the rear lid handle button
- Removing and Installing. Refer to 11.6 Rear Peripheral Camera - R246-, Removing And Installing
- Calibrating. Refer to 11.7 Peripheral Camera, Calibrating .
Information Electronics Control Module 1 - J794-
- Only on Composition Media, Discover Media in glove compartment
- For Composition Color in connection with the Front Information Display Control Head - J685- in the center instrument panel
- Removing and installing Composition Color. Refer to 4.2.1 Radio (Removing and Installing, Composition Color).
- Removing and installing Composition Media, Discover Media. Refer to 1.4 Information Electronics Control Module 1 J794 (Removing and Installing).
Front Information Display Control Head - J685-
- Inside the center of the instrument panel
- Composition Color: in connection with the Information Electronics Control Module 1 - J794-
- Composition Media, Discover Media: individual display
- Removing and installing Composition Color. Refer to 4.2.1 Radio (Removing and Installing, Composition Color).
- Removing and installing Composition Media, Discover Media. Refer to 1.3 Infotainment System Display (Removing and Installing).
