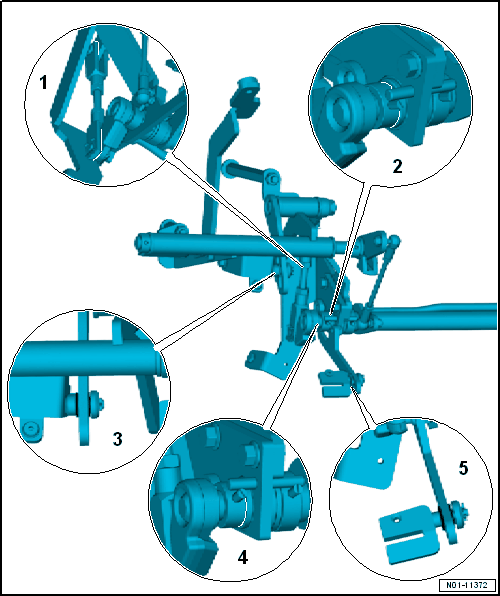

Overview - Driving School Pedals, Driver Side, Golf Sedan

NOT APPLICABLE TO e-GOLF

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Brake Carrier Push Rod
   • Grease the Brake Carrier Push Rod. Refer to BRAKE TRANSFER PUSH ROD JOINT, LUBRICATING, DRIVER SIDE DRIVING SCHOOL PEDALS .
2. Shaft for the Brake and Clutch Pedal Carrier in the Mounting Bracket, Right Bearing Area
   • Shaft for the Brake and Clutch Pedal Carrier in the Mounting Bracket, Greasing the Right Bearing Area. Refer to RIGHT SHAFT BEARING, LUBRICATING, DRIVER SIDE DRIVING SCHOOL PEDALS .
3. Brake Carrier Slot Lever
   • Brake Carrier Slot Lever Greasing. Refer to BRAKE CARRIER SLOT LEVER, LUBRICATING, DRIVER SIDE DRIVING SCHOOL PEDALS .
4. Shaft for the Brake and Clutch Pedal Carrier in the Mounting Bracket, Left Bearing Area
   • Shaft for the Brake and Clutch Pedal Carrier in the Mounting Bracket, Greasing the Left Bearing Area. Refer to LEFT SHAFT BEARING, LUBRICATING, DRIVER SIDE DRIVING SCHOOL PEDALS .
5. Accelerator Pedal Carrier Slot Lever
   • Accelerator Pedal Carrier Slot Lever, Greasing. Refer to ACCELERATOR PEDAL CARRIER SLOT LEVER, LUBRICATING, DRIVER SIDE DRIVING SCHOOL PEDALS .
