Brake Transfer Push Rod Joint, Lubricating, Driver Side Driving School Pedals

NOT APPLICABLE TO e-GOLF

Golf Sedan

-- Turn off the ignition and remove the key.

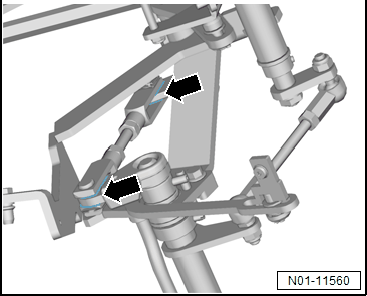

-- Clean the push rod joint with a lint-free cleaning cloth and grease the top and bottom -arrows- using Special Lubricant:G 052 172 M2  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure the driving school pedals move freely and are not damaged.

-- Check that the clutch and brake pedal are engaged securely.

-- Check the accelerator pedal for secure seating.

Golf Sportsvan, Manual Transmission

-- Turn off the ignition and remove the key.

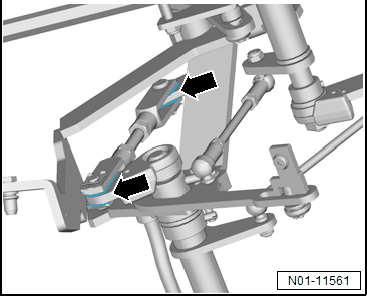

-- Clean the push rod joint with a lint-free cleaning cloth and grease the top and bottom -arrows- using Special Lubricant:G 052 172 M2  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure the driving school pedals move freely and are not damaged.

-- Check that the clutch and brake pedal are engaged securely.

-- Check the accelerator pedal for secure seating.

Golf Sportsvan, Automatic Transmission

-- Turn off the ignition and remove the key.

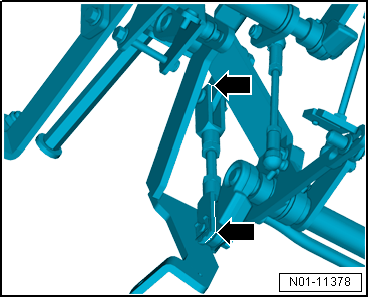

-- Clean the push rod joint with a lint-free cleaning cloth and grease the top and bottom -arrows- using Special Lubricant:G 052 172 M2  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure the driving school pedals move freely and are not damaged.

-- Check that the brake pedal is securely locked.

-- Check the accelerator pedal for secure seating.
