Fuel Tank

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

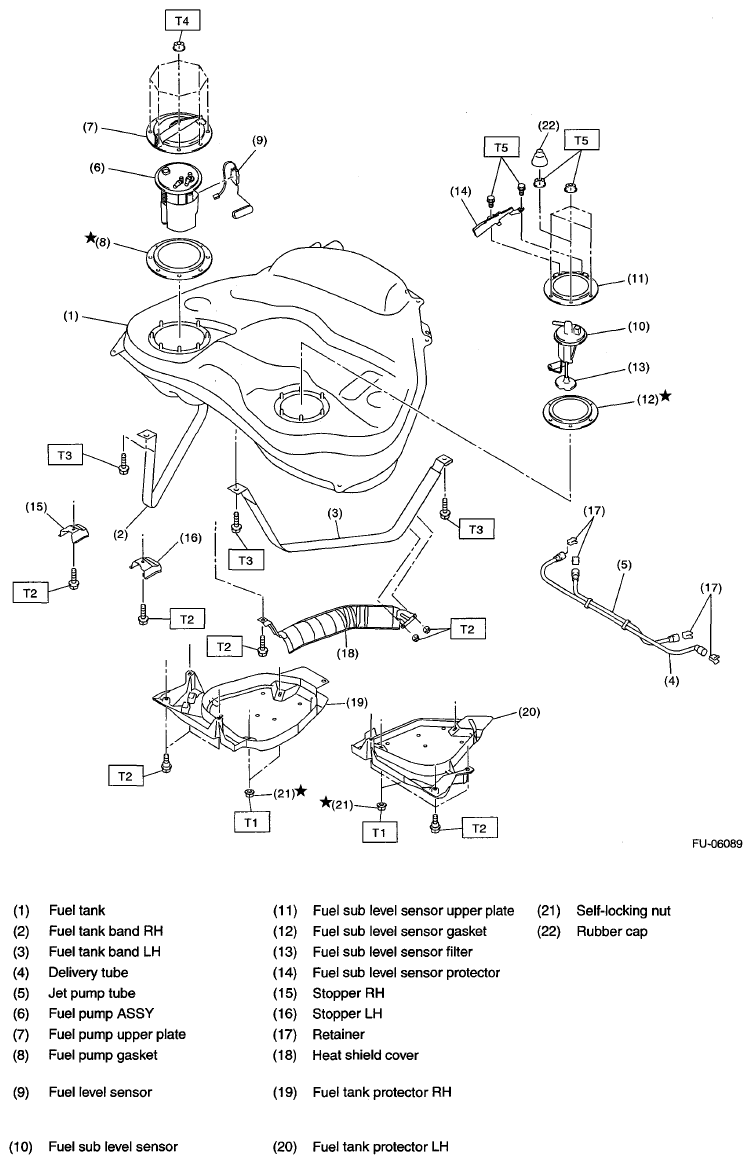

Fig 1: Exploded View Of Fuel Tank

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 9 (0.9, 6.6)

T2: 18 (1.8, 13.3)

T3: 33 (3.4, 24.3)

T4: < Ref. to INSTALLATION , Fuel Pump. >

T5: < Ref. to INSTALLATION , Fuel Sub Level Sensor. >
