Fuel Sub Level Sensor: Installation
WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while being careful of the following.
- Make sure the sealing portion is free from fuel or foreign matter before installation.
- Align protrusion (A) of the gasket to the position shown in the illustration.
- Align protrusion (B) of the fuel sub level sensor to the cutout in the fuel sub level sensor upper plate.
- Tighten the nuts and bolts to the specified torque in the order as shown in the illustration.

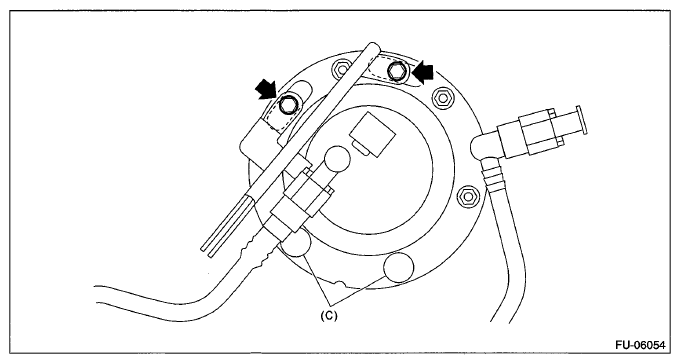

- After tightening, install the rubber cap (C) at the position shown in the illustration.NOTE:
- Use a new gasket.
- Do not forget to install rubber cap (C).
Tightening torque:
4.4 N.m (0.4 kgf-m, 3.2 ft-lb)
