Overview - Final Drive: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

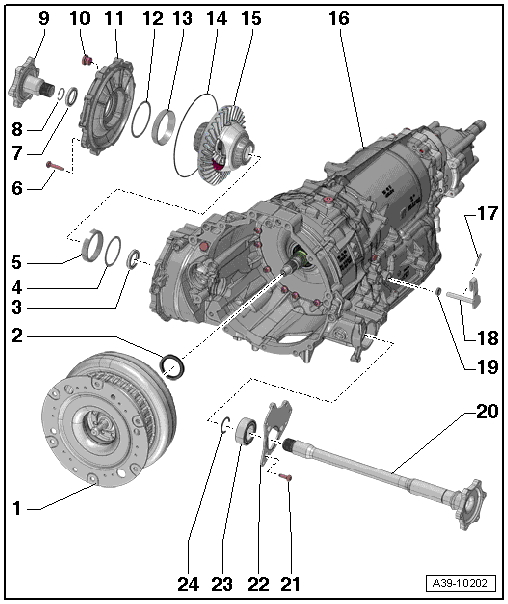

- Torque Converter
- Overview. Refer to .
- Shaft Seal
- For the torque converter
- Shaft Seal
- For the left flange shaft
- Between the final drive and the transmission housing
- Replacing. Refer to LEFT SEAL, REPLACING .
- Shim
- Behind the taper roller bearing outer race
- Taper Roller Bearing Outer Race

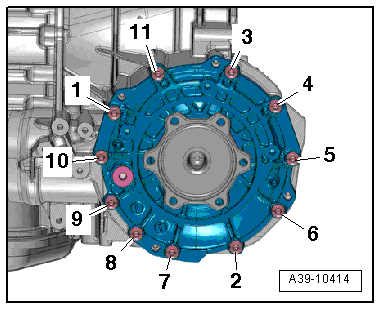

- Bolt
- Tightening specification and sequence. Refer to Figure.
- Shaft Seal
- For the right flange shaft
- Replacing. Refer to RIGHT SEAL, REPLACING .
- Circlip
- Always replace
- Right Flange Shaft
- Removing and Installing. Refer to RIGHT FLANGE SHAFT, REMOVING AND INSTALLING .
- Plug
- For the inspection and fill hole
- For the gear oil inside the front final drive
- Tightening Specification. Refer to Drain and Sealing Plug .
- Cover
- For the front final drive
- Pay attention to the alignment sleeves
- Shim
- Behind the taper roller bearing outer race
- Taper Roller Bearing Outer Race
- O-ring
- On the front final drive cover
- Removing and Installing. Refer to O-RING ON FRONT FINAL DRIVE COVER, REMOVING AND INSTALLING .
- Differential
- Transmission
- Spring Pin
- Removing and Installing. Refer to SELECTOR SHAFT SEAL, REPLACING .
- Shift Lever
- Removing and Installing. Refer to SELECTOR SHAFT SEAL, REPLACING .
- Shaft Seal
- For the shift lever
- Replacing. Refer to SELECTOR SHAFT SEAL, REPLACING .
- Left Flange Shaft
- Removing and Installing. Refer to LEFT FLANGE SHAFT, REMOVING AND INSTALLING .
- Bolt
- 9 Nm +60°
- Always replace
- Gear Carrier
- Use the clip -item 24- OVERVIEW - FINAL DRIVE => List Item:Retainer to attach together with the mount -item 23- OVERVIEW - FINAL DRIVE => List Item:Bearings to the left flange shaft.
- Is identified together as the left flange shaft mounting bracket.
- Bearings
- For the left flange shaft
- Retainer
- For the left flange shaft bearing
