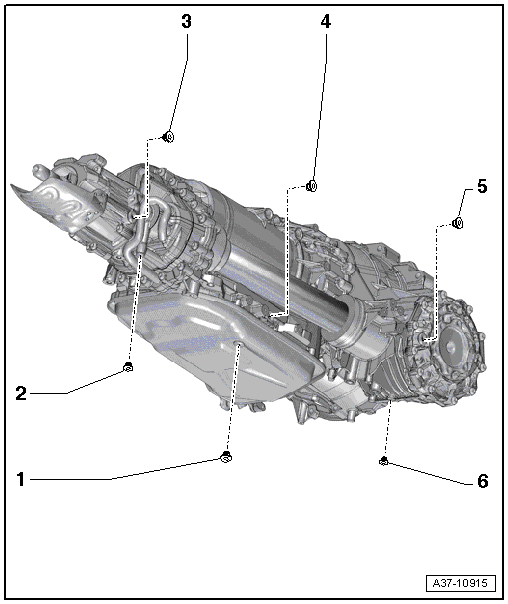

Drain and Sealing Plug
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
- ATF Drain Plug
- 12 Nm
- Always replace
- Oil Drain Plug
- 12 Nm
- Always replace
- For the transmission fluid inside the transfer case
- Drain Plug
- 27 Nm
- Always replace
- For the hole for checking and filling
- For the transmission fluid inside the transfer case
- Drain Plug
- 30 Nm
- Always replace
- For the ATF check and fill hole
- Different equipment depending on version
- Drain Plug
- 27 Nm
- For the hole for checking and filling
- For the transmission fluid inside the front final drive
- Oil Drain Plug
- 10 Nm
- For the transmission fluid inside the front final drive
