Securing On Engine And Transmission Holder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Holding Plate :VW309
Engine And Transmission Holder:VAS6095

Procedure

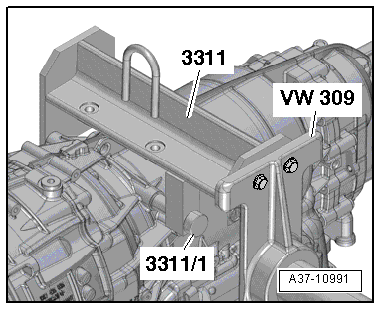

Fig 1: Identifying Support Tool 3311, Bolt 3311/1 And Holding Plate VW 309

Courtesy of AUDI OF AMERICA, LLC

Hold the transmission with the Shop Crane:VAS6100 . Refer to TRANSMISSION, TRANSPORTING .

-- Attach the Holding Plate:VW309A to the Hook And Support Tool:3311 .

-- Place the transmission using the Shop Crane:VAS6100 in the Engine And Transmission Holder:VAS6095 .

NOTE:

The vents for the transmission housing and final drive must be closed before turning a filled transmission with ATF pan upward on the engine/transmission holder.
